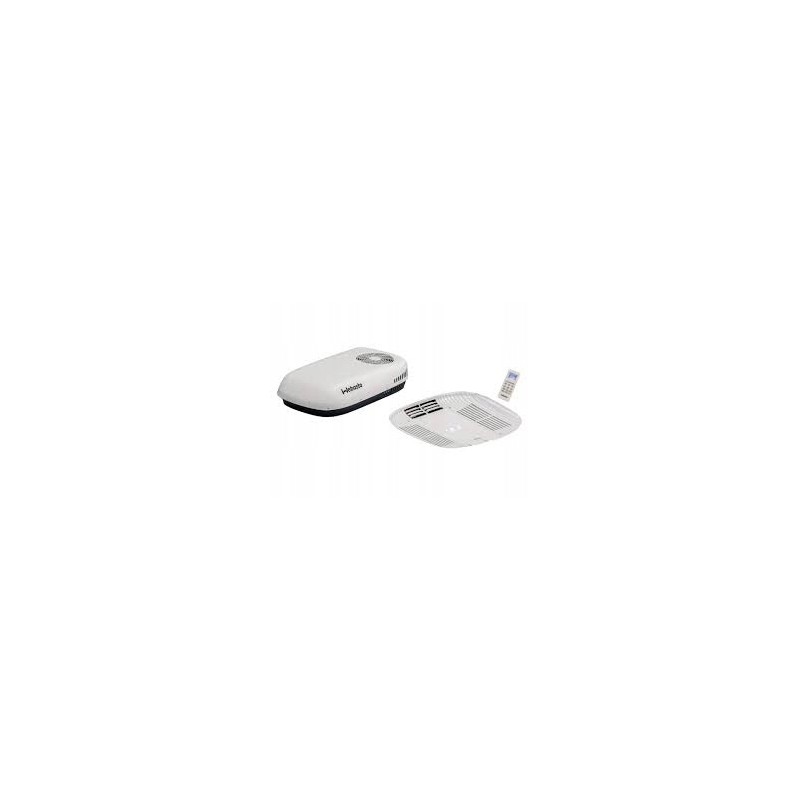

Webasto Cool Top Trail 20 roof parking air conditioner for a camper

Cool Top Trail 20 Webasto roof parking air conditioner

For the perfect climate in a camper

Cool Top Trail air conditioners are intended for use while parked - in campers and caravans up to 10 m long. Thanks to large heat exchangers, they are characterized by high efficiency and performance . Their reliability and high cooling capacity have been tested during a very hot Australian summer with outdoor temperatures of up to 50°C. The units are standardly equipped with a heat pump function, which is also very efficient, operating at low outdoor temperatures of up to even -5 °C.

High efficiency with low noise level

Very low noise level allows you to rest and relax

inside the vehicle and does not disturb your neighbors at the campsite.

The use of high-quality components ensures a long service life with minimal maintenance costs.

The device casing is made of UV-stabilized polypropylene, making it durable and light at the same time. The units can be operated with an easy-to-use remote control that allows you to access all the air conditioner's functions from the comfort of your dining room, armchair or bed. In addition to the cooling and heating functions, the devices are equipped with various additional functions, such as dehumidification, timer and sleep function. Product features: Efficient devices with high cooling and heating power

Durable, light and quiet

Wide temperature range operation from -5 to 50 °C

Low profile and compact design

Easy installation

Technical data:

Cooling power (W) 2,000

Heating power (W) 2,000

Rated voltage / frequency (V) / ( Hz) 230/50

Rated current (cooling mode) 3

Rated current (heating mode) 2.6

Operating temperature range (°C) -5 to 50

Roof thickness (mm) 25-85

Mounting hole dimensions (mm) 400 x 400 (optional mounting frame dimensions 360 x 360)

Outdoor unit dimensions (mm) 1.002 x 566 x 215

Indoor unit dimensions (mm) 557 x 536 x 43

Total weight ( kg) 30.8
