LED interior lighting lamp ft 160 crate camping camper 2 modes switch

POLISH PRODUCT BY FRISTOM

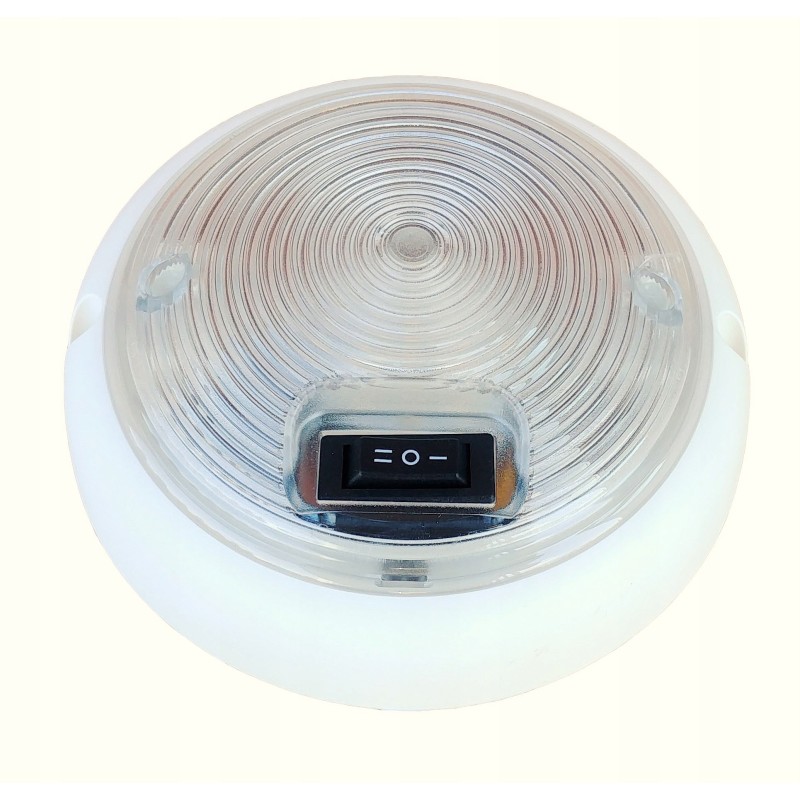

WHITE LAMP FT-160 BW LED - version with a switch

LED interior lighting lamp is used especially in energy-saving electrical installations in the automotive industry, e.g. lighting the vehicle cabin, cargo box and in trailers intended for transporting animals ( e.g. horses) but also in the segment of trailers and camping vehicles. The lamp is equipped with a switch that allows the lamp to operate in two light intensity modes: I = 25%, II = 100%. The main attributes of this lamp are: low current consumption with high light emission and the ability to power it in a wide range of DC voltage. Due to its compact structure, shock resistance and simple installation, the lamp has gained particular recognition in the motorboat industry.

Lamp parameters:

- supply voltage: 12 - 36V DC

- polarity of the lamp connection is not arbitrary

- current consumption: I degree : 12V/24V/36V = 0.08A/0.05A/0.04A, 2nd stage: 12V/24V/36V = 0.4A/0.2A/0.14A

- power consumption (rated power): 1st stage : 12V-36V = 1.2 Watt, 2nd stage: 12V-36V = 5 Watt

- actual luminous flux: 1st stage 110 lm, 2nd stage 400 lm

- optimal lamp operating temperature: -40°C to +55°C

- light color temperature: Neutral White, 4000K

- lampshade made of crack-resistant material - PC material

MANUFACTURER'S RECOMMENDATIONS!!! ATTENTION regarding the installation of lamps!!!

When installing the lamp, do not cut the tinned ends of the lamp cable - this may result in damage to the lighting system and loss of warranty.
