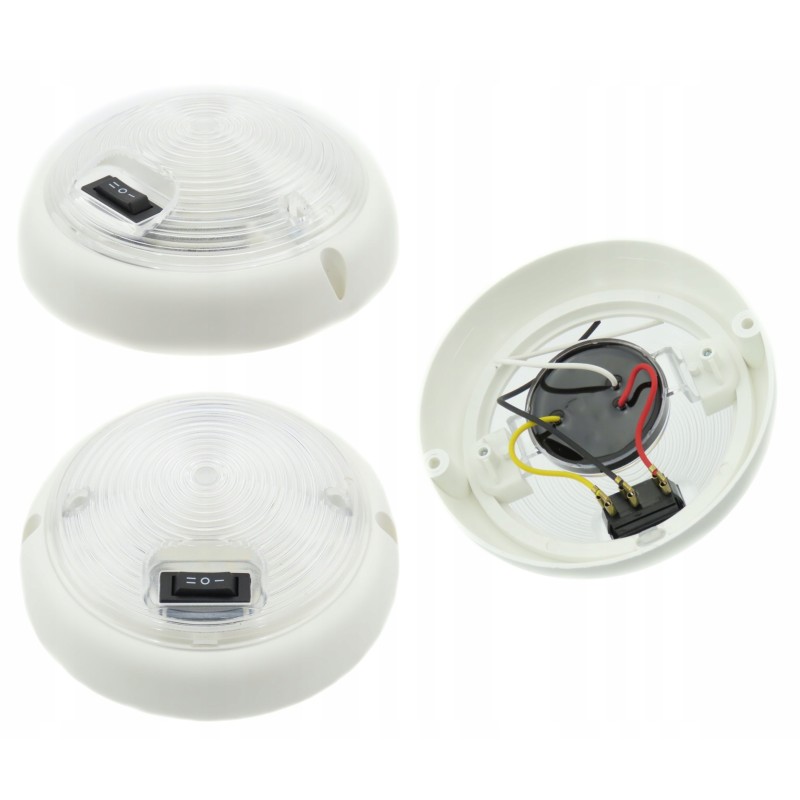

LED interior lighting lamp white crate cabin ft

LED INTERIOR LIGHTS WHITE PAKA CABIN FTLAMP LED INTERIOR LIGHTS WHITE PAKA CABIN FT: Manufacturer: FRISTOM

Product: Interior lighting

Model: FT-160 BW LED

Type: LED DIODE

Rated voltage: 12-36 V

Color: White

Two-stage switch: I = 25%,

II = 100%.

M4 screw spacing: 132mm

Dimensions: 143x50 mm

diffuser made of crack-resistant material - PC material

Color temperature light: Neutral White, 4000K

Optimum lamp operating temperature: -40°C to +55°C

Actual luminous flux: 1st stage 110 lm, 2nd stage 400 lm

Ist stage: 12V-36V = 1.2 Watt ,

II stage: 12V-36V = 5 Watt

Lamp parameters

Lamp functions, Current consumption (peak value), Rated power

12V, 24V, 36V, 12V, 24V, 36V

FT-160 LED - version with switch (1st stage), 0.08A, 0.05A, 0.04A, 1.2W, 1.2W, 1.2W

FT-160 LED – version with switch (2nd stage), 0.4A, 0 ,2A, 0.14A, 5W, 5W, 5W

FT-160 LED - version with a switch

The LED interior lighting lamp is used especially in energy-saving electrical installations in the automotive industry, e.g. lighting the vehicle cabin, load box and in trailers intended for transporting animals (e.g. horses) but also in the segment of trailers and camping vehicles. The lamp is equipped with a switch that allows the lamp to operate in two light intensity modes: I = 25%, II = 100%. The main attributes of this lamp are: low current consumption with high light emission and the ability to power it in a wide range of DC voltage. Due to its compact structure, shock resistance and easy installation, the lamp has gained particular recognition in the motorboat industry.

The lamps are available with a black or white body color.
