Hydraulic valve vbpde 1 4 return lock for 20l cylinder

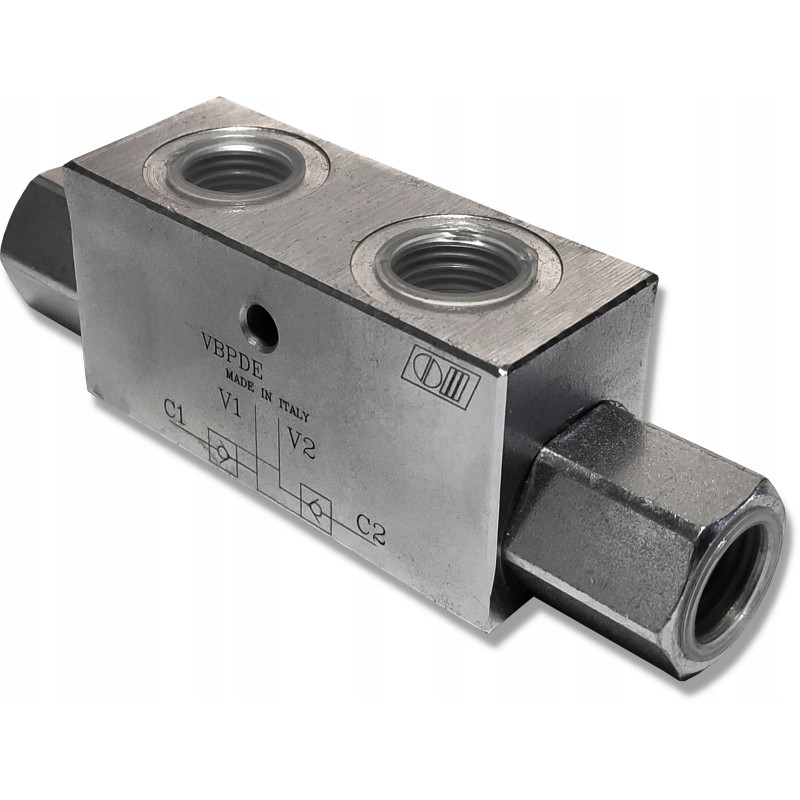

​Hydraulic check valve 'ZAMEK' VBPDE 1/4''​ Locking the double-acting cylinder SKRAW-MET CODE: [0321] Made in Italy, solidly made. The valve is used in double-acting cylinders, it is used to block the cylinder in both directions.

Valve releases the lock when controlling the hydraulic distributor.

The valve is used in rounds, cyclopes, forklifts, agricultural and industrial machines and other hydraulically controlled devices.

​

Connection: Connect V1 and V2 to the supply line (distributor) and C1 and C2 to actuator

​Technical specifications:​Maximum flow: 20L/min

Internal threads in the body: G1/4'

Maximum pressure: 350 Bar

Permissible ambient temperature: from -40°C to +60°C

Permissible oil temperature: from -15°C to +80°C

Oil type: mineral oil-based hydraulic oil

Material: galvanized steel

​
