Description

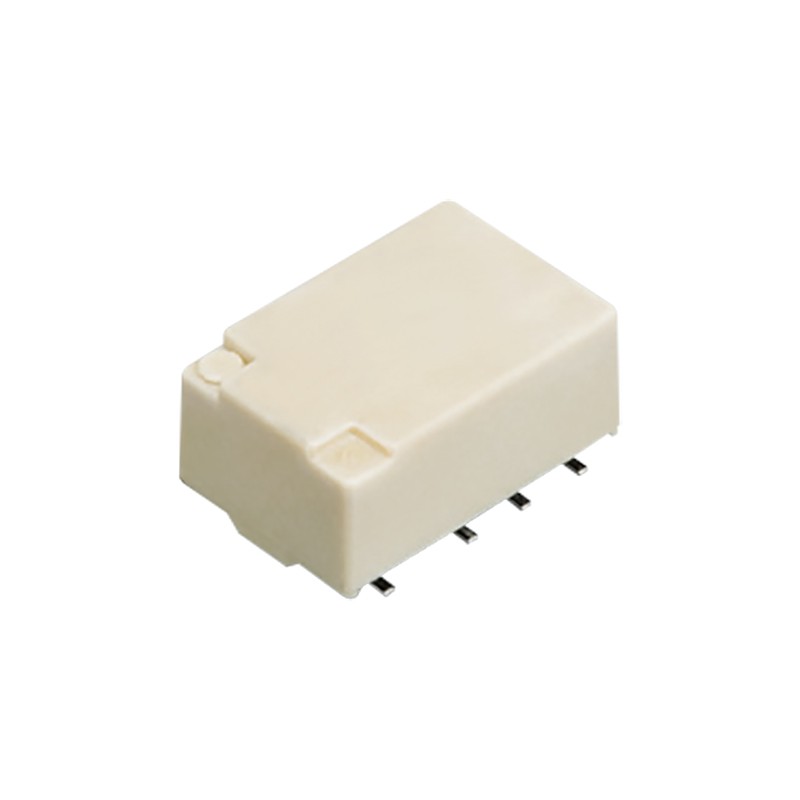

General Purpose Relay DPDT (2 Form C) Surface Mount
Product Details
10electronicpartsUK25554682ND
AGQ20TS24X
3 Items
Data sheet
- Manufacturer
- Panasonic Electric Works
- Operating temperature
- -40°C ~ 85°C
- Part status
- Active
- Contact material
- Silver Nickel (AgNi), Gold (Au)
- Operate time
- 4 ms
- Series
- AGQ TH
- Mounting Type
- Surface Mount
- Coil Resistance
- 2.5 kOhms
- Relay Type
- General Purpose
- Switching Voltage
- 125VAC, 110VDC - Max
- Features
- -
- Coil Voltage
- 24VDC
- Termination Style
- Gull Wing
- Grade
- -
- Packaging
- Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
- Qualification
- -
- Contact Form
- DPDT (2 Form C)
- Contact Rating (Current)
- 2 A
- Load - Max Switching
- 250VA, 220W
- Coil Current
- 9.6 mA
- Coil Type
- Non Latching
- Seal Rating
- -
- Coil Insulation
- -
- Must Operate Voltage
- 18 VDC
- Must Release Voltage
- 2.4 VDC
- Release Time
- 4 ms
