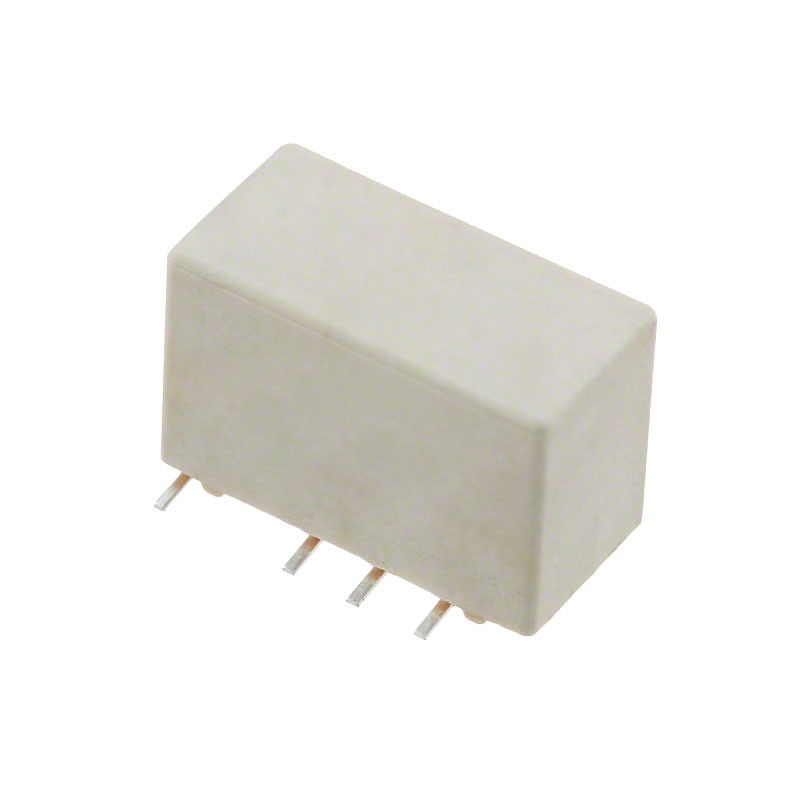

10 pcs : V23079G2016B301 - RELAY GENERAL PURPOSE DPDT 2A 4V
    • 10 pcs : V23079G2016B301 - RELAY GENERAL PURPOSE DPDT 2A 4V

    10 pcs : V23079G2016B301 - RELAY GENERAL PURPOSE DPDT 2A 4V

    10electronicpartsUK41V23079G2016B301TRND
    £63.75
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    General Purpose Relay DPDT (2 Form C) Surface Mount
    Product Details
    10electronicpartsUK41V23079G2016B301TRND
    V23079G2016B301
    3 Items

    Data sheet

    Manufacturer
    TE Connectivity Potter & Brumfield Relays
    Operating temperature
    -40°C ~ 85°C
    Part status
    Active
    Contact material
    Silver Nickel (AgNi), Gold (Au)
    Operate time
    4 ms
    Series
    V23079, AXICOM
    Mounting Type
    Surface Mount
    Coil Resistance
    114 Ohms
    Relay Type
    General Purpose
    Switching Voltage
    250VAC, 220VDC - Max
    Features
    -
    Coil Voltage
    4VDC
    Termination Style
    Gull Wing
    Grade
    -
    Packaging
    Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
    Qualification
    -
    Contact Form
    DPDT (2 Form C)
    Contact Rating (Current)
    2 A
    Load - Max Switching
    500VA, 440W
    Coil Current
    35 mA
    Coil Type
    Non Latching
    Seal Rating
    -
    Coil Insulation
    -
    Must Operate Voltage
    3 VDC
    Must Release Voltage
    0.4 VDC
    Release Time
    4 ms
