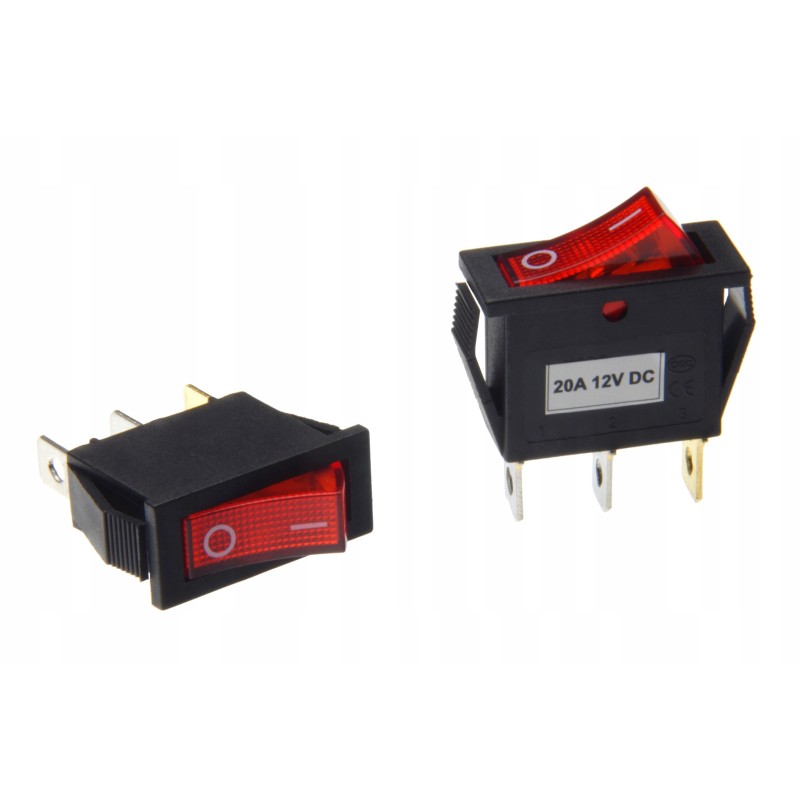

Universal illuminated off on switch 12v 20a

Illuminated switch 20A/12V - red TECHNICAL DATA:

- Contact load capacity: 20A 12V

- Contact resistance: 35mΩ max.

- Insulation resistance: 500VDC 100mΩ

- Dielectric strength: 1500VAC/1 minute

- Operating temperature range: -25~ +85°C

- Lifespan: 10,000 cycles

- Number of contacts: 3

- Number of positions: 2

- Key color: red

- Backlight: YES

External dimensions:

- Width: 14 mm

- Length: 30 mm

- Max height: 38 mm

Installation dimensions: 10 x 28 mm

Connection: 6.3 mm connectors
