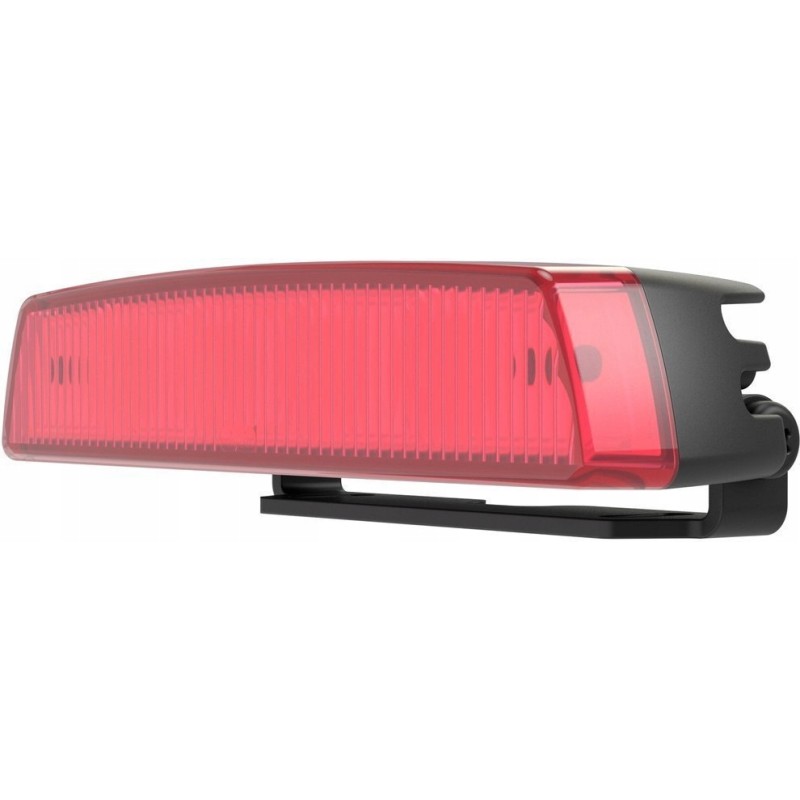

Tyri redline vl4 168 red warning lamp

TYRI VL4 RedLine VL4-168 red LED warning lamp for forklifts.TYRI VL4RedLine is a specialized warning lamp (safety lamp), whose housing is made of one cast aluminum. It is characterized by low weight and exceptional durability. The product has been subjected to numerous durability tests, e.g. a salt spray test lasting up to 500 hours, demonstrating its corrosion resistance. The device is based on point LEDs, of which there are four. When placed in one row, they generate an incredibly strong and focused beam of light which, falling on the ground, creates a red sign warning employees about an approaching vehicle. Its intensity (luminosity) is 4000cd, so it will be impossible to miss it. The LED cover is made of impact-resistant, solid polycarbonate. The electronic system hidden in a minimalist housing is cooled by a radiator placed at the back. This lamp has successfully passed electromagnetic compatibility (EMC) tests, which determine the ability of electrical or electronic devices to operate correctly in a specific electromagnetic environment by achieving an appropriate level of immunity and limiting the emission of disturbances that are not tolerated by other operating devices.

The lamp is resistant to overvoltages and changes in the power grid, electrostatic discharges, radio waves and other electromagnetic phenomena. The IP69K protection level of VL4RedLine is used in situations when lamps require high-pressure cleaning at high temperatures. An example is agricultural machinery, where the lamps mounted on them are exposed to contact with dirt and fertilizers, and after field work is completed, they are frequently washed under high pressure. TYRI VL4RedLine have built-in temperature sensor circuits that reduce power output to regulate light temperature. This prevents damage to the LEDs, which could cause them to fail prematurely.

VL4RedLine also has protection against reverse polarity in the event of incorrect installation. Should the wires be connected incorrectly, the TYRI lamp will not turn on until the wires are connected in the correct configuration, thus protecting the LEDs and associated circuitry. Purpose:

Places where internal vehicle traffic takes place (e.g. forklifts).

Places with ubiquitous noise, e.g. production hall, factory, logistic warehouse (light signal is always visible).

VL4RedLine lamps are mainly used in the sector: Product features:

Made of one cast aluminum.

Degree of protectionIP69K - total resistance to dust ingress and cleaning with a steam jet.

Operating temperature: -40°C to +85°C

Salt spray test (ASTM B117) lasting 500 hours.

Vibration test with a frequency from 5 to 2000 H on all axes, lasting up to 8 hours.

Shock test up to 50G with a duration of 11 ms.

Environmental test in conditions down to -40°C to +85°C and humidity up to 90% for a minimum of 35 days.

Electromagnetic compatibility (EMC) tests: EN55025 / CISPR 25 Class 3 / ISO 11452-2 / ISO 11452-4 / ISO 16750-2 / ISO 10605 / ISO 7637-2.

Compatible with all forklifts.

5 YEAR WARRANTY.

Technical data:

Input voltage: 12V - 48V.

Operating voltage range: 9 - 60V.

Operating temperature: -40°C to +85°C.

Minimum required current: 12V / 1.1A or 24V / 0.6A.

Rated power: 14W.

Light intensity: 4000cd.

Light wave length: 630nm.

Reverse polarity protection.

Overvoltage protection.

Overheating protection.

Product weight:

435 g

The TYRI VL4RedLine beacon provides visual safety as opposed to relying solely on audible signals such as sirens or alarms, especially when hearing sound in noisy environments is significantly difficult. The lamp projects a beam of light as a concentrated, visible mark on the floor in front of or behind the forklift. VL4RedLine lamps are mainly used in the MATERIAL HANDLING sector, e.g. mounted on forklifts, but they can be used in many other industries where heavy vehicles are used. TYRI is an American-British-Swedish brand with 40 years of experience in creating specialized light control systems. Products designed by a team of engineers are characterized by reliability in operation, solid construction and simplicity in installation. The solutions are used in difficult warehouse conditions, and even extreme ones, such as mines - in environments where only experienced players can survive.
