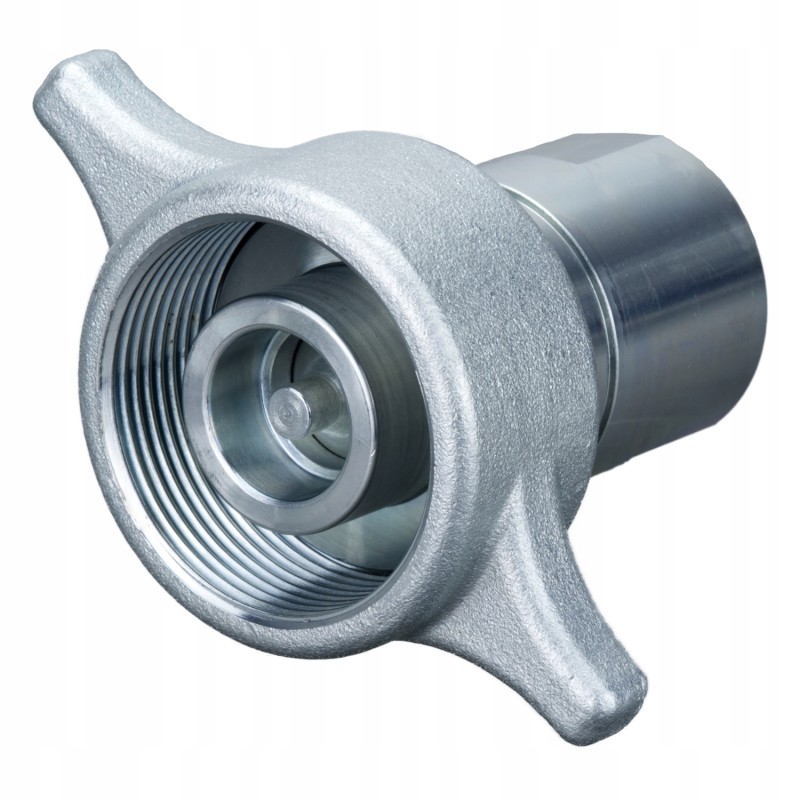

Screwed butterfly quick connector, 3 4 vcr plug

Twisted butterfly quick connector, plug with 3/4' BSP internal thread, model VCR/CVE/HT

Twisted quick connector designed for applications requiring quick connection or disconnection without the use of tools, while having appropriately high operating parameters, such as pressure and flow. They are most often used in tipping trailers!

Characteristic handles on the quick connector plug, resembling the shape of butterfly wings, enable trouble-free screwing or unscrewing of quick connectors in all conditions without the need to use tools!

In the case of a two-line solution, it is recommended to use quick connectors with a 3/4' BSP thread on the line pressure and 1' BSP on the return line. This procedure is intended to avoid incorrect connection of the system!

Technical parameters:🔵 connection thread: 3/4' BSP

🔵 working pressure max. 300 bar

🔵 type: plug

🔵 body material: carbon steel

🔵 sealing material: NBR

🔵 temperature range: -25°C to +100°C

🔵 pressure connection: not allowed

🔵 application: construction machines (trailer tipping)

In other auctions you will find the second part of the complete set. We also offer mushroom quick couplings, dry-cut quick couplings (flat), screwed or brake quick couplings.

We also offer hydraulic lines, connectors, and a wide selection of valves and distributors, hydraulic pumps or motors, or actuators.

We can offer a complementary assortment or spare parts for all items.
