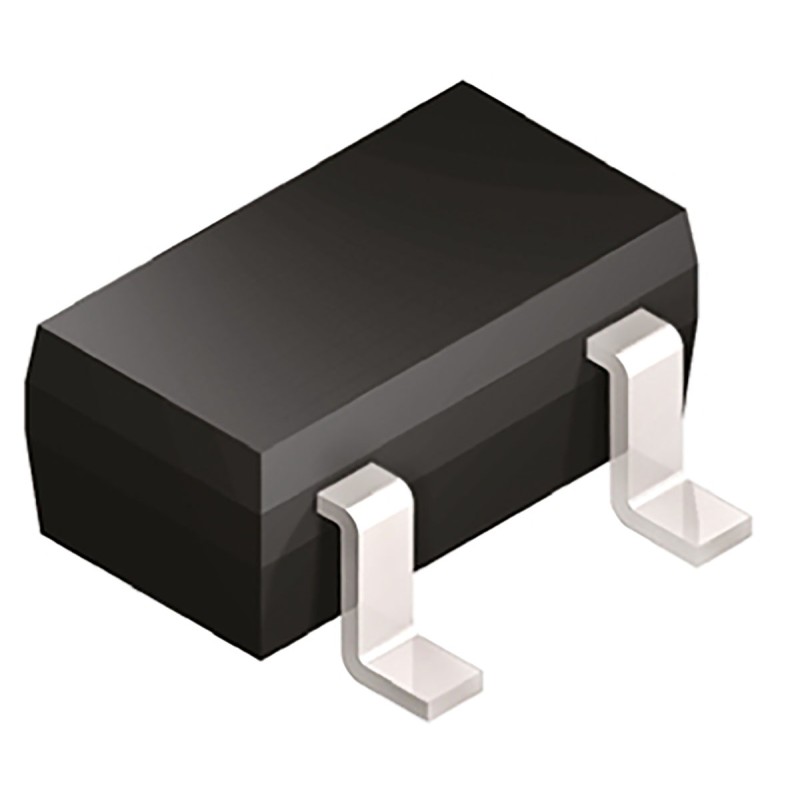

100 pcs - CDSOT23-T24CAN Bourns CDSOT23-T24CAN, Dual-Element Bi-Directional ESD Protection Diode, 3-Pin SOT-23
    • 100 pcs - CDSOT23-T24CAN Bourns CDSOT23-T24CAN, Dual-Element Bi-Directional ESD Protection Diode, 3-Pin SOT-23

    100 pcs - CDSOT23-T24CAN Bourns CDSOT23-T24CAN, Dual-Element Bi-Directional ESD Protection Diode, 3-Pin SOT-23

    100(Allparts)1261762
    BOURNS
    100 pcs - CDSOT23-T24CAN Bourns CDSOT23-T24CAN, Dual-Element Bi-Directional ESD Protection Diode, 3-Pin SOT-23
    £48.40
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    TVS Diode CAN-bus Protection Array, Bourns ElectronicsA dual TVS device designed to provide ESD and surge protection for CAN transceivers. The CDSOT23-T24CAN protects both data lines and meets IEC 61000-4-2 (ESD) and IEC 61000-4-5 (Surge) requirements. The low capacitance and leakage current minimize impact on signal integrity making the device compatible with high-speed CAN networks.Transient Voltage Suppressors, Bourns Electronics
    Product Details
    BOURNS
    100(Allparts)1261762
    CDSOT23-T24CAN
    10 Items

    Data sheet

    Manufacturer
    BOURNS
    Dimensions
    3 x 1.4 x 1.02mm
    Width
    1.4mm
    Height
    1.02mm
    Length
    3mm
    A-Supplier
    Allparts-UK/15/R-12
    Maximum Operating Temperature
    +150 °C
    Mounting Type
    Surface Mount
    Minimum Operating Temperature
    -40 °C
    Pin Count
    3
    Package Type
    SOT-23
    Direction Type
    Bi-Directional
    Minimum Breakdown Voltage
    26.2V
    Maximum Reverse Stand-off Voltage
    24V
    Maximum Peak Pulse Current
    8A
    ESD Voltage
    30kV
