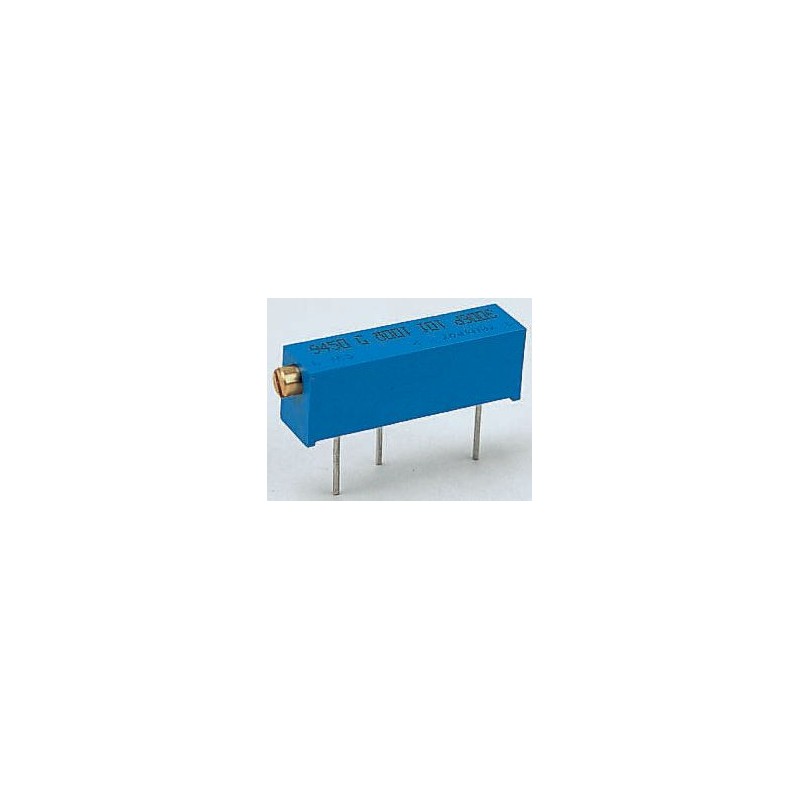

10 pcs - 3006P-1-251LF 250Ω, Through Hole Trimmer Potentiometer 0.75W Side Adjust Bourns, 3006
    • 10 pcs - 3006P-1-251LF 250Ω, Through Hole Trimmer Potentiometer 0.75W Side Adjust Bourns, 3006

    10 pcs - 3006P-1-251LF 250Ω, Through Hole Trimmer Potentiometer 0.75W Side Adjust Bourns, 3006

    10(Allparts)7870755P
    BOURNS
    250Ω, Through Hole Trimmer Potentiometer 0.75W Side Adjust Bourns, 3006
    £29.52
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    19mm ( in.) 750mW Rectangular End Adjust 3006 Series StandardBourns Standard 3006P Series 19mm ( in.) rectangular end adjust cermet trimmer with a power rating @ 70°C of 750mW. The 3006P series cermet trimmer’s wiper idles at the end of its travel and is sealed to withstand immersion board washing.Nominal 15 turn Adjustment AnglePanel mounting adaptor available, stock no. 107-6878
    Product Details
    BOURNS
    10(Allparts)7870755P
    3006P-1-251LF
    10 Items

    Data sheet

    Manufacturer
    BOURNS
    Tolerance
    ±10%
    Length
    20.57mm
    Temperature coefficient
    ±100ppm/°C
    A-Supplier
    Allparts-UK/15/R-16
    Series
    3006
    Maximum Operating Temperature
    +125°C
    Mounting Type
    Through Hole
    Minimum Operating Temperature
    -55°C
    Power Rating
    0.75W
    Orientation
    Side Adjust
    Termination Style
    Pin
    Maximum Resistance
    250Ω
    Number of Turns
    15
