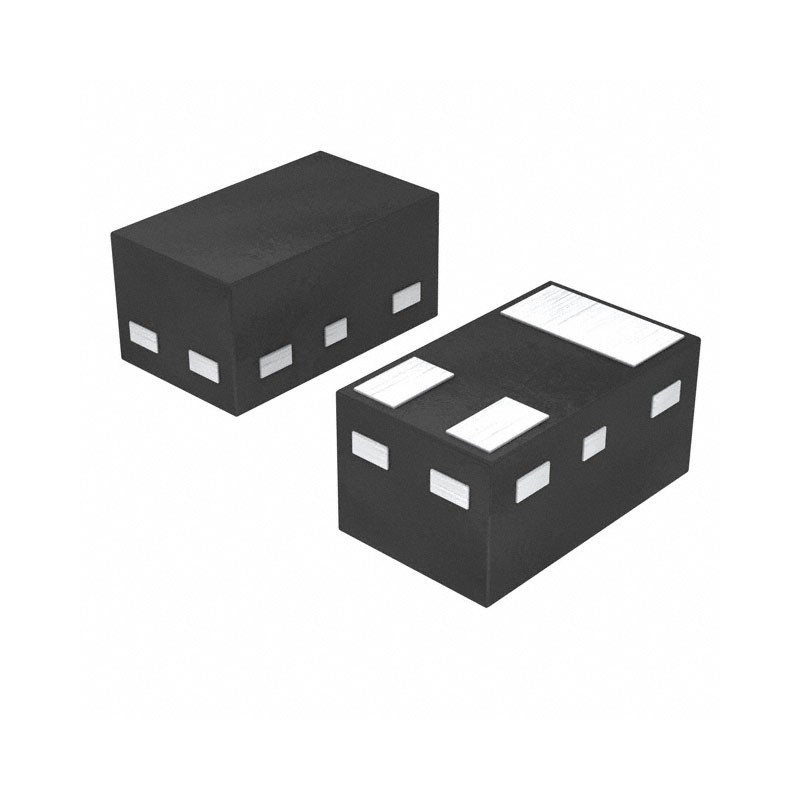

    1 pcs : PDTC143EMB,315 - TRANS PREBIAS NPN 50V 0.1A 3DFN
    • 1 pcs : PDTC143EMB,315 - TRANS PREBIAS NPN 50V 0.1A 3DFN

    1 pcs : PDTC143EMB,315 - TRANS PREBIAS NPN 50V 0.1A 3DFN

    1electronicpartsUK1727PDTC143EMB,315TRND
    £8.08
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    Pre-Biased Bipolar Transistor (BJT) NPN - Pre-Biased 50 V 100 mA 230 MHz 250 mW Surface Mount DFN1006B-3
    Product Details
    Nexperia USA Inc.
    1electronicpartsUK1727PDTC143EMB,315TRND
    PDTC143EMB,315
    3 Items

    Data sheet

    Manufacturer
    Nexperia USA Inc.
    Part status
    Active
    Series
    -
    Mounting Type
    Surface Mount
    Grade
    Automotive
    Transistor Type
    NPN - Pre-Biased
    Packaging
    Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
    Base Product Number
    PDTC143
    Qualification
    AEC-Q100
    Current - Collector (Ic) (Max)
    100 mA
    Voltage - Collector Emitter Breakdown (Max)
    50 V
    DC Current Gain (hFE) (Min) @ Ic, Vce
    30 @ 10mA, 5V
    Vce Saturation (Max) @ Ib, Ic
    150mV @ 500µA, 10mA
    Current - Collector Cutoff (Max)
    1µA
    Frequency - Transition
    230 MHz
    Power - Max
    250 mW
    Supplier Device Package
    DFN1006B-3
    Resistor - Base (R1)
    4.7 kOhms
    Resistor - Emitter Base (R2)
    4.7 kOhms
