Sog installation kit 3000a dometic 3000 4000

SOG TYP 3000A CT3000/CT4000 WHITE A specially designed, small, high-performance fan that turns on automatically when the toilet valve is opened, creates a negative pressure in the retention tank:

This creates a "suction" at the valve opening, which draws in fresh air and odors generated during use and directs them outside. The air suction acts as a seal and prevents any unpleasant fermentation gases from escaping from the tank, more air (oxygen) is drawn into the cassette.

Even after automatic shutdown (closing the slider), the system is constantly ventilated thanks to the pipe or hose connection that is always open to the outside. This supply of oxygen supports the decomposition process.

Important: Replacement and activated carbon filters should be replaced annually.

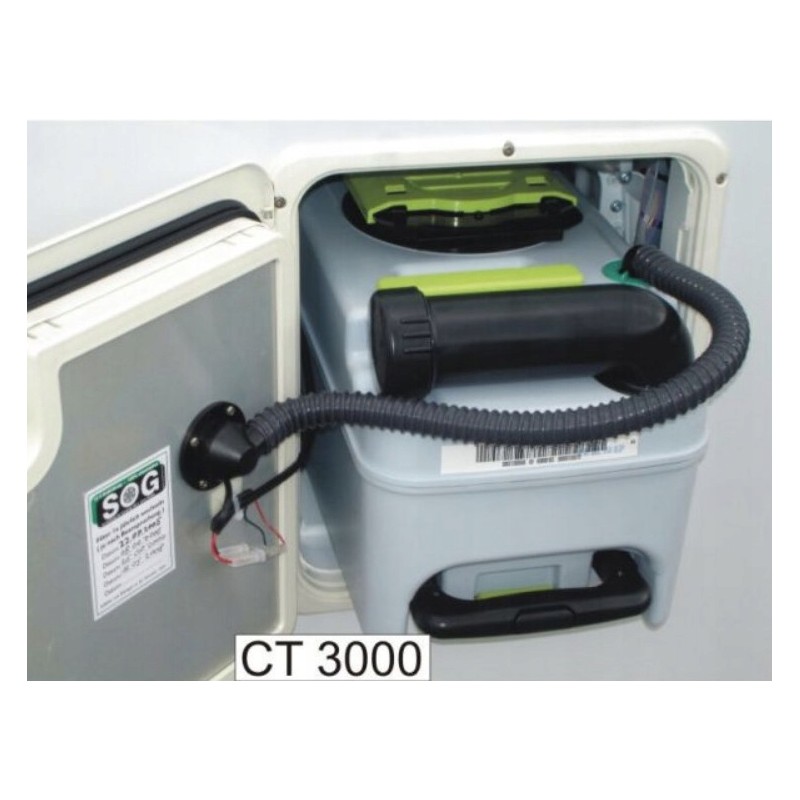

The fan is mounted directly on the inside of the disposal flap. The activated carbon filter housing is attached to the outside. The attractive plastic housing is available in white. SOG for the service hatch is the easiest variant of the air vent to install.

The kit includes accessories and assembly instructions.

TYPE: 3000A

Model: Dometic CT3000/ CT4000

Mounted in the service door.

Color: white
