Sog toilet fan type h c220 thetford c 220

SOG II VENTILATION SET FOR TETFORD TOILET C220Imagine sitting on the toilet and not smelling anything! SOG ® users know this effect. At the same time, the use of other toilet accessories is completely unnecessary in the case of such an electric ventilation system - and this not only protects your wallet, but also the surroundings.

Advantages at first glance:

exceptionally good filtration of gases discharged to the outside safe in the awning area

quiet operation

flexible installation inside the vehicle

no changes to the exterior wall of the recreational vehicle

How does it work?

Thanks to a specially developed small, high-performance fan that automatically turns on when opening the toilet guide, a negative pressure is generated in the sewage tank:

1. This creates a 'suction' at the door opening which draws in fresh air and odors generated during use and leads outside. The air inlet acts as a closure and prevents 100% of all unpleasant fermentation gases from rising from the tank. With each use, more air (oxygen) is drawn into the cartridge. Rinse delivers water every time.

2. Strong SOG fan.

The SOG system uses only high-quality, quality components. And especially SOG has developed a fan that is resistant to the corrosive effects of the components of the air sucked from the tank. Moreover, the fan is waterproof.

Only thanks to the precisely set speed, the fan achieves the desired effect with low energy consumption (excluding switching off during use) of 0.84 watts.

3. The system works even when the fan is not running. Since carbon is currently the best filtering medium, it cleans the feces cassette from methane and ammonia, expelling the gases outside.

CARBON FILTER

Activated carbon is an important component of SOG II.

It is very eco-friendly, made from organic materials such as peat, nuts and sugar.

It consists mainly of carbon (usually 90%) with a very porous structure. The pores are connected like a sponge (open pores). Activated carbon is used as an adsorbent, among others. in chemistry, medicine, water and sewage treatment, as well as in ventilation and air conditioning technology.

SOG ® + SOG ® filters offer convincing advantages:

long life (1 year)

complete neutralization of unpleasant odors through complete processing

no coal dust development

low weight

compact size

PRODUCT DESCRIPTION:

Producer: SOG

Model: SOG II

Type H

For toilet model: Thetford C220

12V power supply

Low power consumption: 0.84 watt

Installation method: floor, cabinet, storage room

Equipped with a carbon filter

The set includes all necessary accessories and assembly instructions

Product code: rei662349

The system can be installed up to three meters from the toilet and anywhere on the floor (e.g. in the garage hatch, under a seat, in a double floor or in a storage compartment). A specially developed filtering unit works so efficiently that the extracted air is completely neutralized.

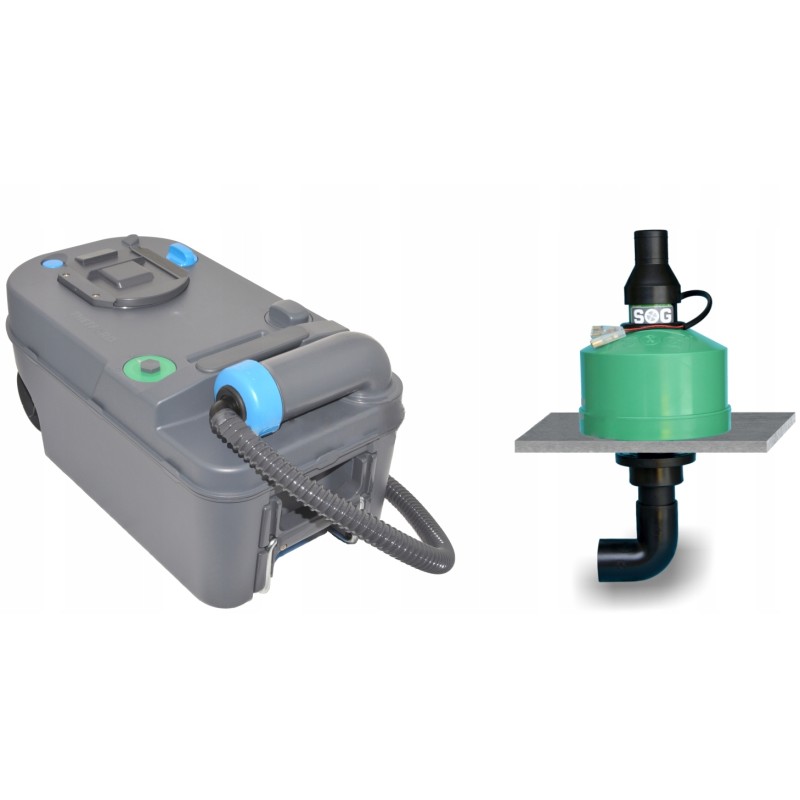

SET CONTENTS:

Fan motor integrated in the housing

Exhaust hose with spigot (the supplied hose is 65 cm long. If you install the filter cartridge further from the toilet (up to a maximum of three meters), you will need a gas-tight hose

cables with switch to power the fan (when in use)

complete small parts for assembly

Assembly instructions

Green filter cartridge

Floor channel with sealing flange and base

Use and maintenance:

The fan will be turned on when the slider is opened (please open before use) and will turn off again when the slider is closed. This means that: before using the toilet, open the glass to activate the SOG and thus obtain the desired odor extraction.

After emptying, the tank should be rinsed thoroughly with clean water and shaken to avoid sediment. The cassette should then be filled with half a liter of water. Occasional, semi-annual cleaning should be carried out with a tank cleaner, in accordance with the toilet manufacturer's recommendations. The toilet itself should be cleaned and cared for using dedicated products available on the market. The addition of vinegar or other harsh detergents is harmful to the cassettes.
