Sog toilet fan type f c250 260 wall version

SOG VENTILATION SYSTEM FOR THETFORD C250 / C260 TOILET Imagine sitting on the toilet and not feeling any unpleasant odors. SOG users know this feeling. At the same time, thanks to this system, the use of chemical toilet additives is completely unnecessary - which not only protects your wallet, but also the environment.

The system works even when the fan is not running. Toilet cassettes naturally build pressure by releasing gases, which the SOG system uses to passively discharge them through a carbon filter to the outside.

How it works:

Thanks to a specially developed small and efficient fan that automatically turns on when opening the toilet valve, a negative pressure is generated in the sewage tank.

The negative pressure creates a suction effect that draws in fresh air and odors generated during use and leads them outside. Thanks to this movement of air in the toilet, a 'blockage' is created that prevents unpleasant odors from being released.

Strong SOG fan:

The SOG system uses only high-quality components. The fan is also resistant to water and gases sucked in from the tank, which have a corrosive effect.

Thanks to precisely controlled speed, the fan achieves the desired effect with very low energy consumption: only 0.43 W.

Carbon filter:

Activated carbon is an important part of the SOG system.

It is an environmentally friendly material, made from organic materials such as peat, nuts and sugar.

It consists mainly of carbon (usually 90%) with a very porous structure. Activated carbon is used as an adsorbent in chemistry, medicine, waterworks, sewage treatment and ventilation and air-conditioning technologies.

SOG filters offer convincing advantages:

long service life (1 year)

complete neutralization of unpleasant odors

no coal dust

low weight

compact size

Environmental protection:

In addition to eliminating unpleasant odors, active toilet ventilation has the great advantage that it works without the use of chemicals.

When the toilet is closed, continuous access of oxygen into the cassette through the SOG system hose ensures that the decomposition process is accelerated. Thanks to this, even commercial toilet paper decomposes quickly and the use of special paper is not necessary.

Product description:

Producer: SOG

Model: SOG

Type: F

For toilet model: Thetford C250 / C260

Power supply: 12V

Low power consumption: 0.43 W

Equipped with a carbon filter

Installation method: to the toilet door

Filter housing in white

The set includes all necessary accessories and assembly instructions

Product code: REI66218

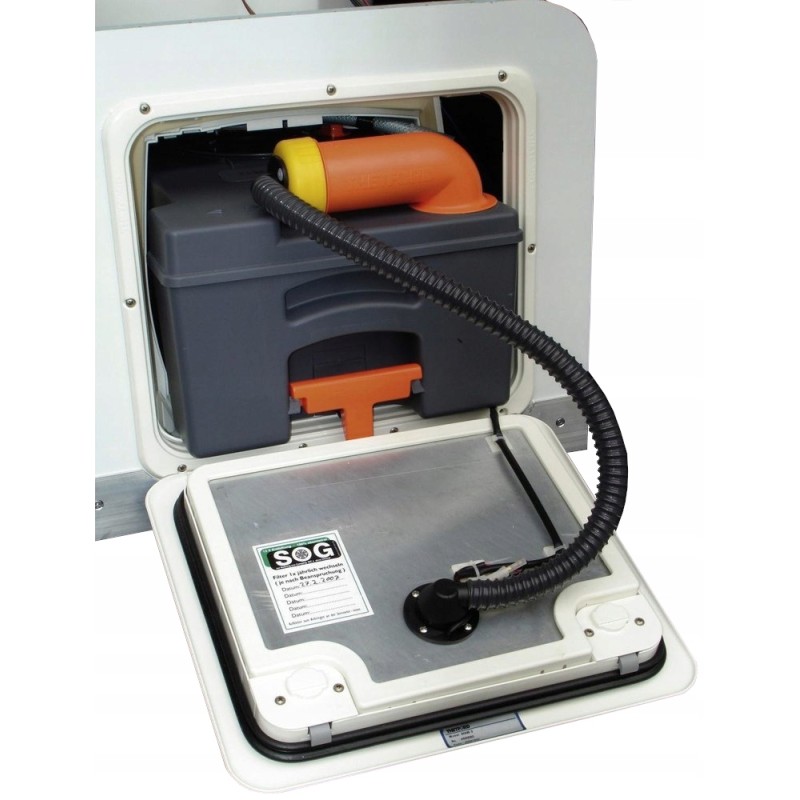

The fan is mounted directly in the waste flap with an activated carbon filter attached. The neat plastic flap is available in white, but can be painted to match the body color SOG for service hatch is the easiest variant of toilet ventilation systems to install.

Set contents:

Fan motor integrated in the housing

Exhaust hose with connection stub

Transition parts for connection to the cassette

Cap (for use when emptying the cassette)

Set of cables with a switch for powering the fan

Small parts for assembly

Assembly instructions

White filter housing with activated carbon filter

Use and maintenance :

The fan will be turned on when the damper opens and will turn off again when the damper is closed.

This means that: before using the toilet, open the latch to activate the SOG and thus obtain the desired odor extraction.

After emptying, the tank should be thoroughly rinsed with clean water and shaken to avoid deposits. The cassette should then be filled with half a liter of water.

Cleaning with a tank cleaner should be performed every six months according to the toilet manufacturer's recommendations. Cleaning and care of the toilet itself should be done using dedicated products available on the market. Adding vinegar or other harsh detergents is harmful to the cassettes.

It is not necessary to drill the cassette.

The existing pressure relief valve is simply replaced with a new SOG system adapter, making the installation process simple and quick.

The outer cover provides a natural look that blends in with the camper's body, making the system unobtrusive and maintaining the factory style.
