Timing chain tensioner quad atv kinroad fmb 4t

INDEX: ZC1145

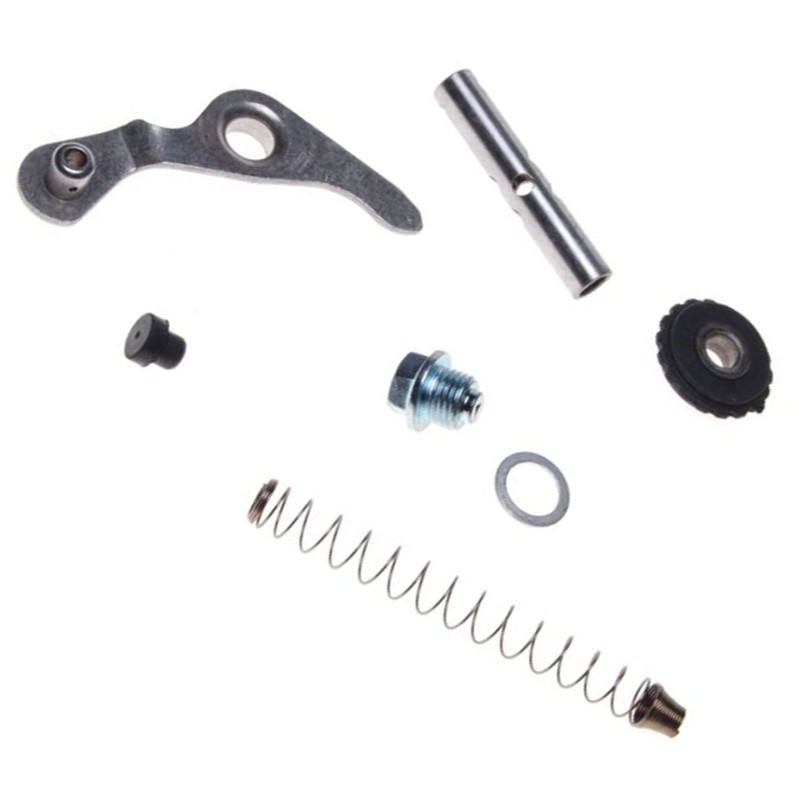

DESCRIPTION: TIMING TENSIONER REPAIR KIT.

APPLICATION: QUAD KINROAD ATV WITH ENGINE CAPACITY 50 TO 110 cm3, KING, ŁOŚ, TEXAS, RANGER, JOLLY, ITXINII TIANCHOPPER, KNIGHT, SMYK, XT50, ENDURO, XT50PY, PY-5, ROMET OGAR 900, TRAIL VIVA CITY, NEKEN, MANIC, ZUMICO RONIN, GB STREET, BENZER, SHAFT, KINGWAY ALPINUS, HUMMER, MINITRAPER, SPORT, QEEP, MINI CAT AR, FERRO, SHINERAY XY50Q-2E AND MANY OTHERS WITH 139 FMB ENGINE.

DIMENSIONS:

TENSIONER WHEEL:

OUTER DIAMETER 35mm

HOLE DIAMETER 10mm

HEIGHT 9mm

ROLLER:

LENGTH INCLUDING RUBBER TIP 72mm

DIAMETER 12mm

'LEAD/TENSION':

TOTAL LENGTH 99mm

INNER DIAMETER OF THE SMALLER SLEEVE 5mm, OUTER DIAMETER 10mm

INNER DIAMETER OF THE LARGER SLEEVE 12mm, OUTER DIAMETER 15mm

HOLE SPACE 48mm

SPRING:

LENGTH 111mm

OUTER DIAMETER 11mm

SCREW:

TOTAL LENGTH 21.5mm

THREAD DIAMETER 14mm

COLLAR DIAMETER 21mm

WASHER:

INTERNAL DIAMETER 14mm

OUTER DIAMETER 20mm

THICKNESS 1.5mm

NOTES:

THE PRICE IS FOR 1 SET

ZR00215
