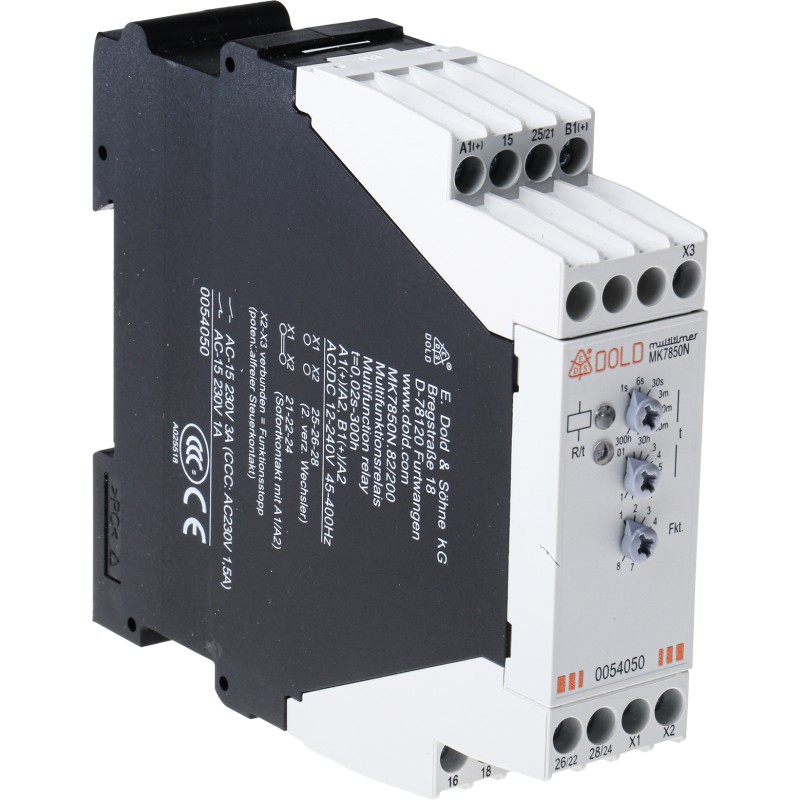

1 pcs - Dold MK7850N Series DIN Rail Mount Timer Relay, 12 - 240V ac/dc, 2-Contact, 0.03 - 300 min, 0.06 -

Allparts-UK/15/R/424-9906
Dold
£318.74
Quantity
Out-of-Stock

Product Details
Dold
Allparts-UK/15/R/424-9906
MK7850N.82/200 AC/DC12-240V 0.02S-300H

Data sheet

Manufacturer
Dold
Width
22.5mm
Length
90mm
Maximum current
(dc) 1 A, (ac) 3A
Contact material
AgNi
Depth
97mm
A-Supplier
Allparts-UK-R
Series
MK7850N
Supply Voltage
12 - 240V ac/dc
Terminal Type
Screw
Maximum Operating Temperature
+60°C
Mounting Type
DIN Rail
Minimum Operating Temperature
-20°C
Contact Configuration
DPDT
Time Delay
50ms
Number of Contacts
2
Maximum Voltage
240V ac/dc
Mode of Operation
Delay Pulse, Flash Start with Impulse, Fleeting ON Break, Fleeting ON Make, Operate Delay, Pulse Former, Release Delay
Time Range
0.03 - 300 min, 0.06 - 30 s, 3 - 300h
Number of Timer Functions
Multi Function
Time Increment
Hours, Minutes, Seconds
Switch Configuration
DPDT
Power Supply
External
