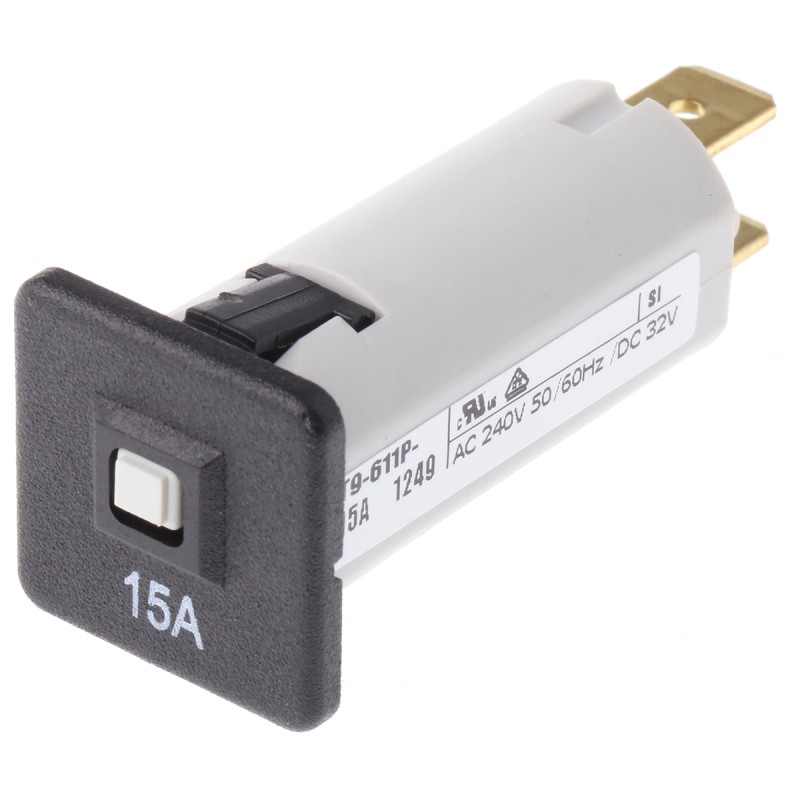

10 pcs - 4404.001 Schurter Thermal Magnetic Circuit Breaker - Single Pole 240 V ac, 32V dc Voltage Rating, 15A Current Rating

T9 series thermal circuit breakersT9 single-pole, compact thermal circuit breakers.Trigger via a bimetallic element.Connection via Faston terminals.Reset button on the front panel.Snap-fitting installation.ApprovalsUL, CSA, IEC 60394Schurter 1-Pole Non Fused Isolator SwitchThe Schurter T9 series is a single-pole non-fused isolator switch is a snap-in type from the front. It is a thermal circuit breaker with 15A current rating. Its service is temperature ranges from -5°C to 60°C.Features and Benefits• Cycling trip-free release • Insulation resistance of more than 100Mohm• Push to reset operation• Quick connect terminals• Voltage rating is 32VDC and 240VACApplications• Designed for standard and medical applications • Household appliances• HVAC• Industrial appliances • Power supplies • Power tools • Uninterruptible power supplyCertifications• CQC certified• CSA C22.2 235 •GB 17701• IEC 60934• UL 1077• VDE approvedThermal Magnetic ConvertibleAll CBEs have blade terminals and have an insulation resistance greater than 100MΩ (MegaOhms).
