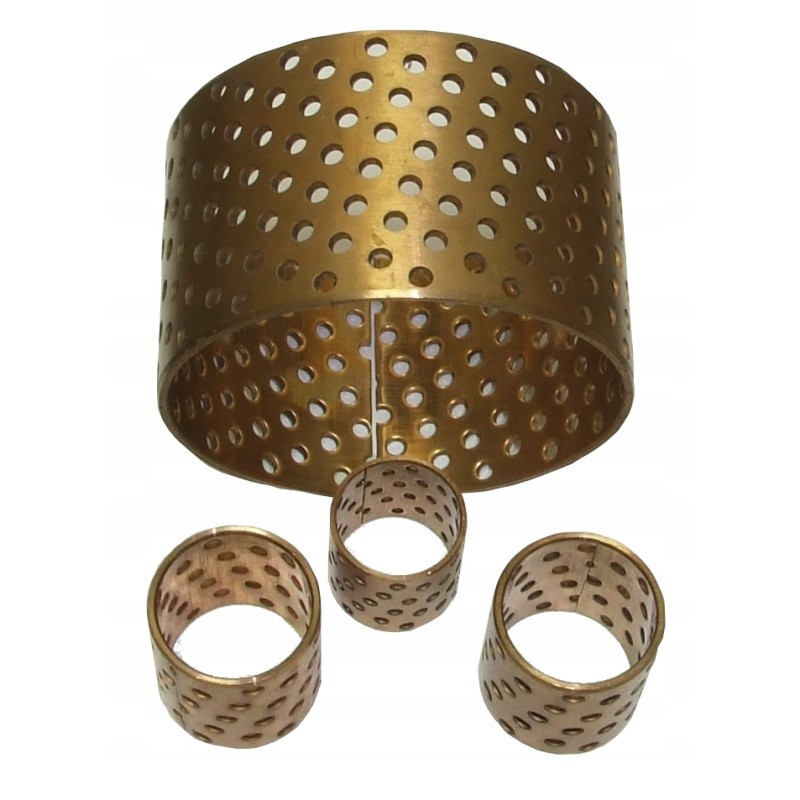

Sleeve plain bearing 60x65x50

Plain bearing with through holes. Thanks to them, the sleeve has a greater ability to collect grease, which at the beginning of movement will create a thin layer of lubrication and reduce friction.

They are used in systems with high loads and lower speeds, such as construction, transport and agricultural machines, e.g. as sleeves in actuator ears, holes for pins, where we need the nominal dimension.

Material: CuSn8 - Cu: 91.3%

Sn: 8.5%

P: 0.2%

Static load: 120 N/mm2

Dynamic load: 40 N/ mm2

Working speed: >,2.5 m/s

Tensile strength: 450 N/mm2 - m/s

Plasticity: 250 N/mm2 - m/s

Hardness: 90-120 HB

Working temperature range: - 100~200 C

We also offer bushings in other dimensions.
