Connections to a 3-section 40l hydraulic distributor

SET OF CONNECTIONS FOR A 3-SECTION HYDRAULIC DISTRIBUTOR 40L/min Application: Hydraulic connections are perfect for hydraulically powered machines and devices. They can be used in agriculture, horticulture, forestry and construction.

They allow the connection of a hydraulic distributor with pipes.

Technical data:

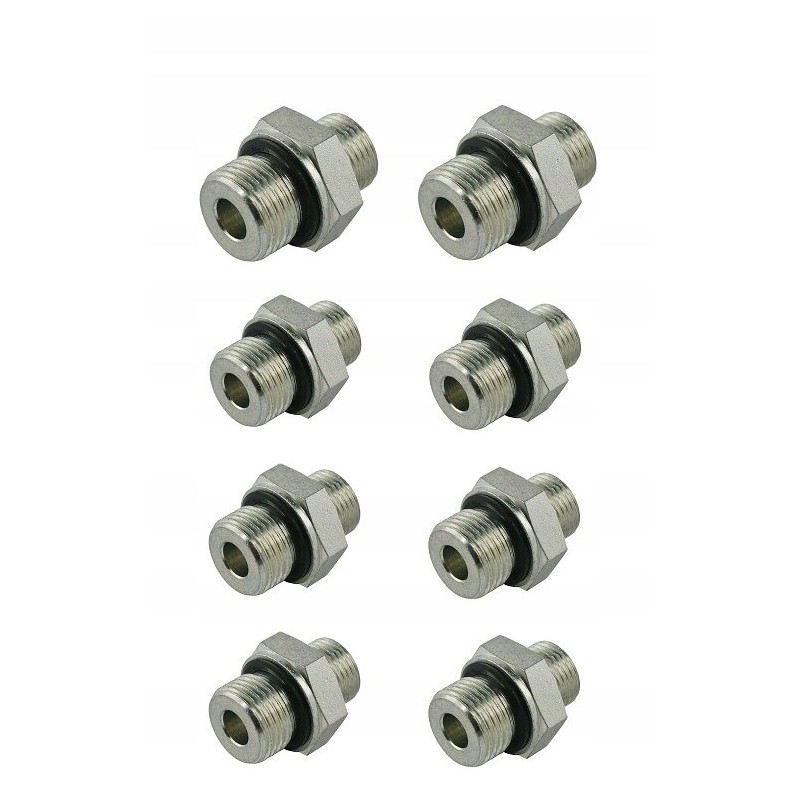

1 pc. refers to a set of 8 connections. The set includes a power supply, return and 6 actuator connections. Each connection has a rubber seal, so there is no need to add gaskets.

Threads:

POWER SUPPLY:

Thread on the distributor side, inch BSP: 1/2'

Thread on the hydraulic conduit side: M22x1.5

RETURN:

Thread on the distributor side, inch BSP: 1/2'

Thread on the hydraulic line side: M22x1.5

FOR ACTUATORS:

Thread on the distributor side, inch BSP: 3/8'

Thread on the hydraulic line side: M18x1.5

Material:

galvanized steel resistant to corrosion

rubber seals

Each connection has a rubber seal, so there is no need to add seals. Helpful data:

Thread diameter M18x1.5 measured with a caliper:

Outer diameter [mm]: 17.6 - 17.9

Inner diameter [mm] : 16.2 - 16.6

----------------------------------------- --------------------------------------------

Thread diameter M22x1.5 measured with a caliper:

Outer diameter [mm]: 21.6 - 21.9

Inner diameter [mm]: 20.2 - 20.6

------------------ -------------------------------------------------- -----------------

BSP 1/2' thread diameter measured with a caliper:

Outer diameter [mm]: 20.5- 20.9

Inner diameter [mm]: 18 ,6 - 19

-------------------------------------------------------- ----------------------------------------

Thread diameter 3/8' measured with a caliper:

Outer diameter [mm]: 16.3 - 16.6

Inner diameter [mm]: 14.9 - 15.4
