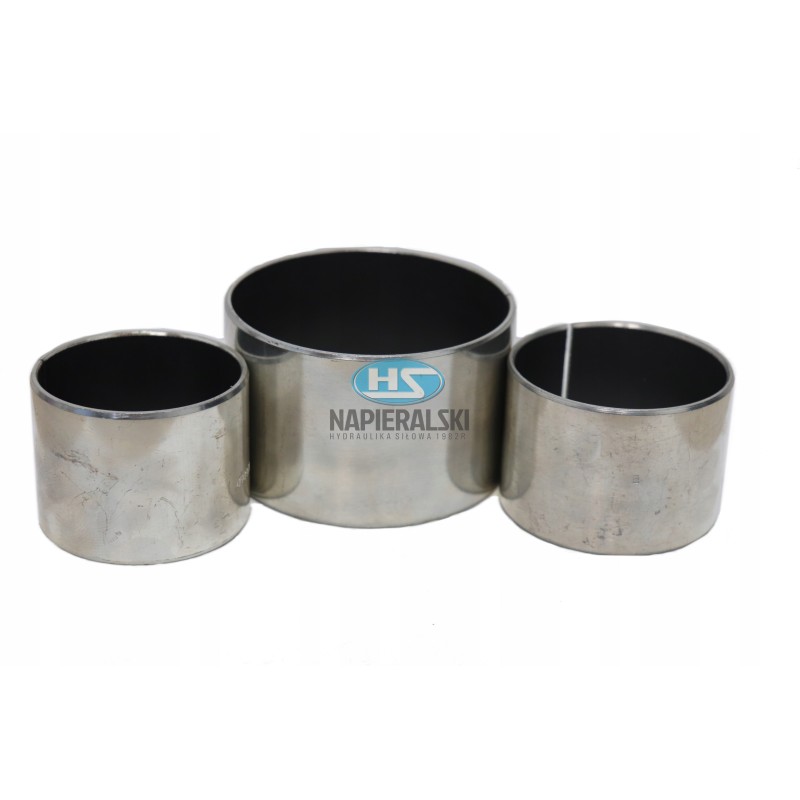

Sleeve, plain bearing, PTFE steel, 95x100x50

Sliding bearing consisting of three layers of different materials. Dimensions 95X100X50 They are used in systems with heavy loads and lower speeds, such as construction, transport and agricultural machines, e.g. as bushings in actuator ears, pin holes, where we need a nominal dimension.

Load static: 250 N/mm2

Dynamic load: 140 N/mm2

Hydrodynamic operating speed: >,2.0 m/s

Dry operating speed 2.0 m/s

Operating temperature range: -195~280 C

1 - Teflon a surface that significantly improves lubrication with a thickness of 0.01-0.03 mm. After the rolling process, the PTFE mixtures are filled with bronze layers in the gap. During normal operation, some of the PTFE mixture on the top layer will be removed and transferred to the mating surface, creating a physically lubricating film that will reduce the coefficient of friction.

2 - Porous bronze layer - maintains the Teflon layer.

3 - Steel backing - provides thermal conductivity and load resistance .

4 - copper and zinc layer.

We also offer sleeves in other dimensions.
