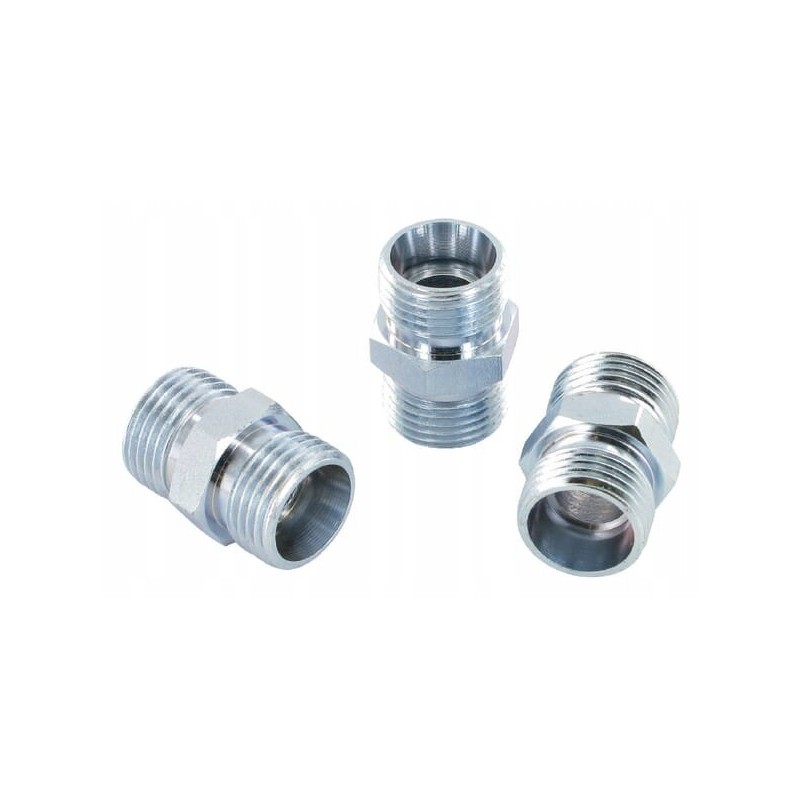

Straight connector m16x1 5 10l gs10lgp gopart

Straight connector M16x1.5 10L Parameters

Part number: GS10LGP

Unit: piece

Manufacturer: gopart

Shape: Straight – 2 connection sides

Connector type: Cutting ring

Connector type - male/female: Female

Connection diameter: 10 mm

Thread diameter connectors: M16

Connector no. 1 thread pitch: 1.5 mm

Connector thread type: Metric

Connector no. 2 type: Cutting ring

Connector no. 2 type - male/female: Female

Connection no. 2 diameter: 10 mm

Connector no. 2 thread diameter: M16

Thread pitch connector no. 2: 1.5 mm

Thread type of connector no. 2: Metric

Pipe diameter: 10 mm

DIN standard: 2353

Material: Steel

Series: L

Quantity in package: 1 pc.

Height: 27 mm

Length, second attachment to the center line: 11 mm

Total length: 27 mm

Key opening: 17 mm

Key opening, other end: 19 mm

Specifications

- For direct connection to metric hose nut or pre-assembled fitting

Benefits

- Low risk of leakage

Application

- Hydraulic hose

- Hydraulic hoses

Technical information

- galvanized without CR6
