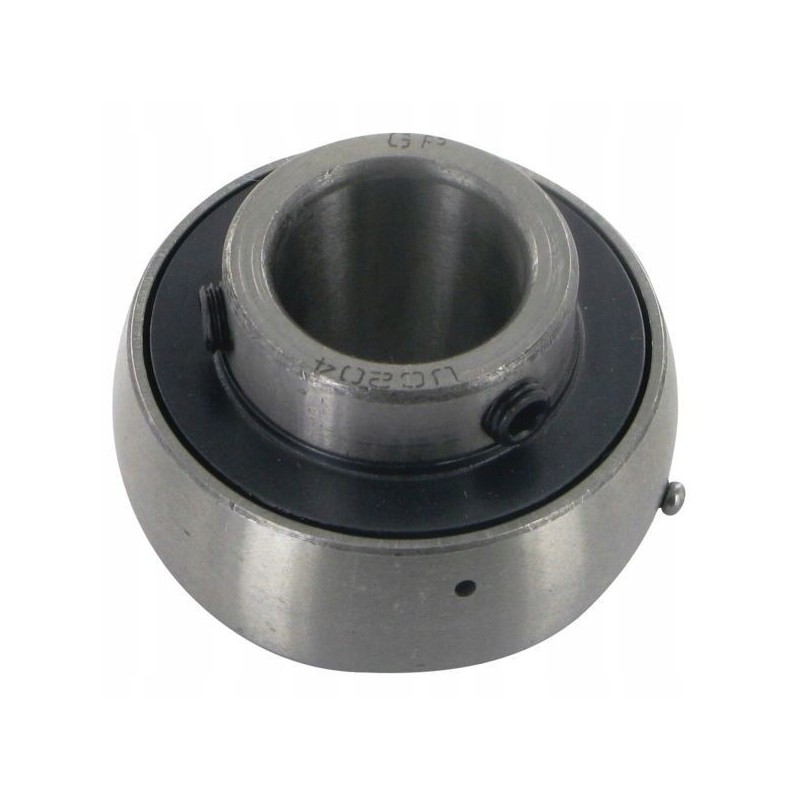

Uc206gp bearing insert

Bearing insert INDEX: UC206GP

Features: - Double-sided extended inner ring with 2 pressure screws - Convex outer ring with lubrication holes - Double-sided sealed

Inner diameter: 30 mm

Application: - Construction of mobile machines - Stationary machine construction

Outer diameter: 62 mm

Width of the outer part: 19 mm

Width inner part: 38.1mm

Dimension from the ball axis to the end of the mounting sleeve: 15.9 mm

Distance from the axis of the mounting screw to the edge: 5.5 mm

Dimension from the ball axis to the end of the inner part: 22.2 mm
