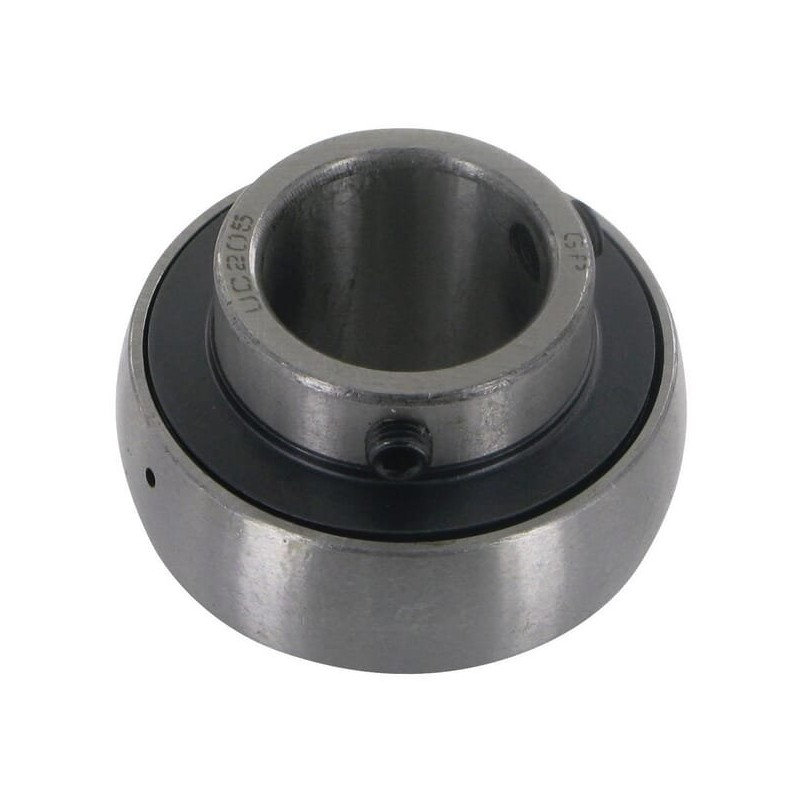

Bearing insert 25x52x17 mm gopart Parameters
Part number: UC205GP
Unit: piece
Manufacturer: gopart
EAN: 8716106031375
Inner diameter [d]: 25 mm
Outer diameter [D]: 52 mm
Width of the outer part [Be]: 17 mm
Width of the inner part [Bi]: 34 mm
Distance from the axis of the mounting screw to the edge [G]: 5, 5 mm
Dimension from the ball axis to the end of the mounting sleeve [N]: 14.3 mm
Dimension from the ball axis to the end of the outer part: 19.7 mm
Application
- Construction of mobile machines - Stationary machine construction Properties
- Double-sided extended inner ring with 2 adjustment screws - Convex outer ring with lubrication channel
