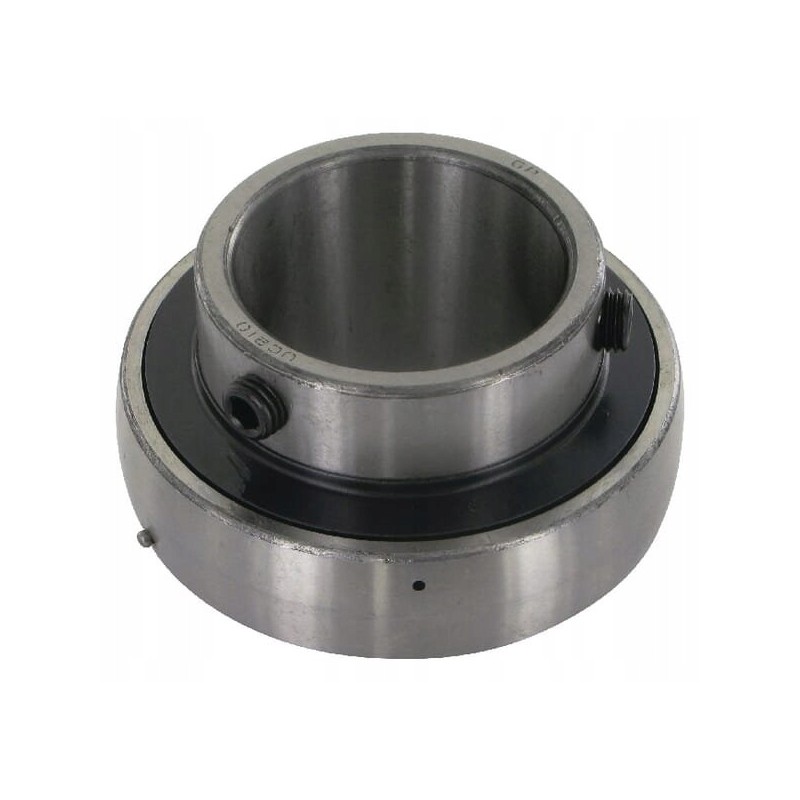

Bearing insert 50x90x23mm gopart uc210gp gopart

Bearing insert 50x90x23 mm gopart Parameters

Part number: UC210GP

Unit: piece

Manufacturer: gopart

EAN: 8716106031429

Inner diameter [d]: 50 mm

Outer diameter [D]: 90 mm

Width of the outer part [Be]: 23 mm

Width of the inner part [Bi]: 51.6 mm

Distance from the axis of the mounting screw to the edge [G]: 9 mm

Dimension from the ball axis to the end of the mounting sleeve [N]: 19 mm

Application

- Construction of mobile machines - Stationary machine construction Properties

- Double-sided extended inner ring with 2 adjustment screws - Convex outer ring with lubrication channel Dimension from the axis of the balls to the end of the inner part [M]

32.6mm
