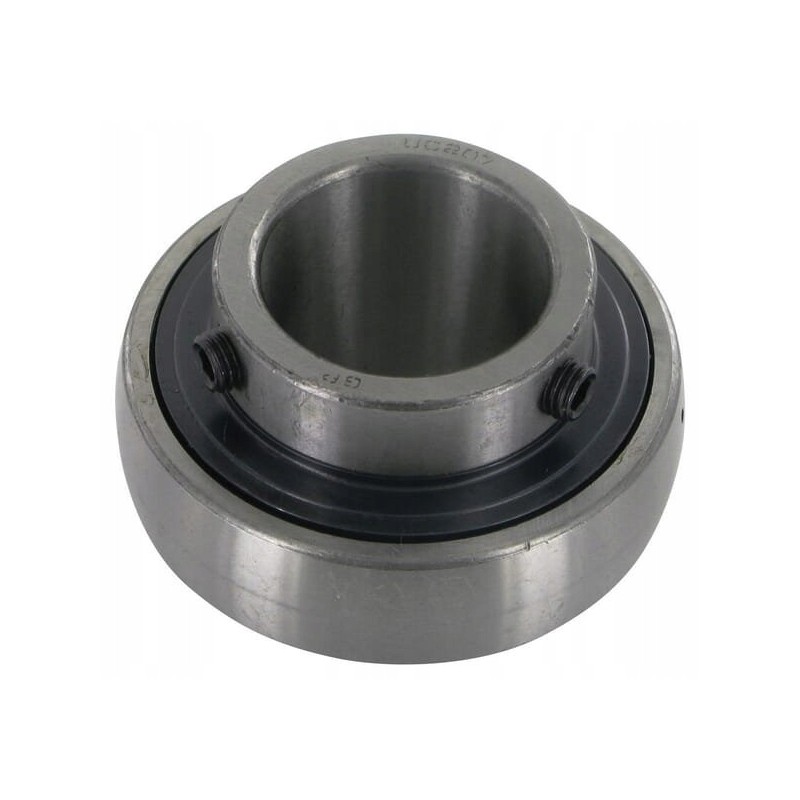

Bearing insert 35x72x20 mm gopart Parameters
Part number: UC207GP
Unit: piece
Manufacturer: gopart
EAN: 8716106031399
Inner diameter [d]: 35 mm
Outer diameter [D]: 72 mm
Width of the outer part [Be]: 20 mm
Width of the inner part [Bi]: 42.9 mm
Distance from the axis of the mounting screw to the edge [G]: 6.5 mm
Dimension from the ball axis to the end of the mounting sleeve [N]: 17.5 mm
Application
- Construction of mobile machines - Stationary machine construction Properties
- Double-sided extended inner ring with 2 adjustment screws - Convex outer ring with lubrication channel Dimension from the axis of the balls to the end of the inner part [M]
25.4mm
