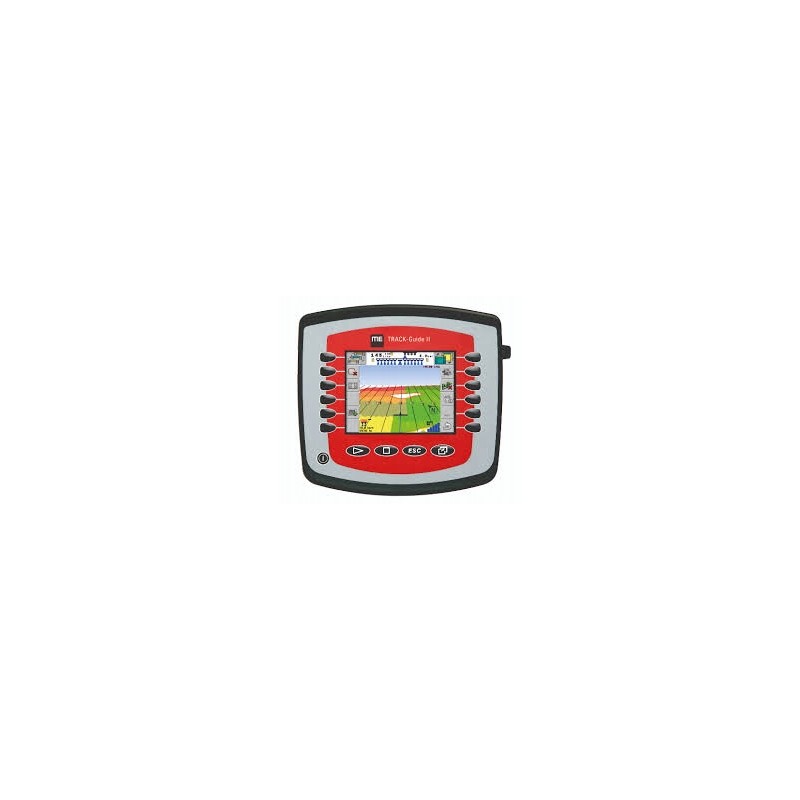

Agricultural navigation track guide ii with ag star

We offer a brand new Muller Elektronik Track Guide II navigation with an AG-STAR antenna

Satellite navigation set with an integrated obstacle warning system

High-quality 12-channel DGPS receiver

Possible return to interrupted treatment thanks to automatic saving of parameters

Recording of the outline of field boundaries, obstacles, driving paths, ready field map saved in the capacious internal memory

Connection for a working position sensor

Settings of working width and tramline spacing

SECTION-View – operating mode of working sections

Day/night mode

Function of moving tramlines

Functions

TRACK-Guide is a simple yet precise GPS navigation system for driving the machine in various modes (e.g. parallel driving, contour driving, circular driving, etc.)

The operator is guided by a color, high-contrast display. At the bottom of the monitor there is an icon of the driven machine with the expected route. The zoom function allows you to change the scale smoothly. The "Bird's perspective" button activates the view of the entire field.

It is possible to change the view between 2D and 3D modes.

There are virtual diodes in the upper area of the display, which makes it easier to correct the travel lines and assess the accuracy driving the machine. Driving the machine along the contour of the field allows you to measure its surface. The system also allows the location of natural obstacles to be saved in the device's memory. During work, these points will be signaled acoustically and graphically.

Activation of the ISOBUS UT application turns the terminal into a comfortable version of the ISOBUS terminal while maintaining its existing functions.

The device is equipped with high-capacity internal memory . It is used to record the shape, area of individual fields and marked technological paths. The ability to edit the names of individual fields and machines used facilitates data management and processing.

Technique

Compact, solid construction of the device

Damage-resistant panel with laminated buttons< p>

15 cm TFT color display with a resolution of 320 x 240 pixels

Adjustable display brightness

Operating temperature: -20 to +70 C

Easy installation and transfer of the device to another machine

Internal memory 1 GB

Parallel and contour guidance

Warning against obstacles

Surface measurement, speed, distance

High quality 12-channel DGPS receiver with integrated antenna and magnetic hook for quick installation, use of the free EGNOS D-GPS satellite system

Calibration of the EGNOS correction signal via a reference point

Advantages

Precise machine guidance, eliminating overlapping working widths leads to savings in production resources and fuel, increases efficiency

Precise execution of agrotechnical operations increases yields

Warning about natural obstacles eliminates the risk of equipment damage

Possibility of working in conditions of limited visibility

Limiting damage to plants in row crops, limiting relapse time

Very simple, intuitive operation

Possibility to precisely determine any points in the field (obstacles)

Easy installation, transfer of the system to another machine

SECTION-CONTROL BOX CONFIGURATOR

Enables the expansion of the basic sprayer control systems with field navigation with the SECTION-Control automatic control of working sections based on the SECTION-Control BOX on-board computer. Applies to ME controllers (SPRAYDOS, UNI-Control S and SPRAY-Control S) and computers of other companies (DAMMANN, AMASPRAY+, HARDI HC2500/5500, JOHN DEERE EL-4, TeeJet 840, BERTHOUD DP Tronic
