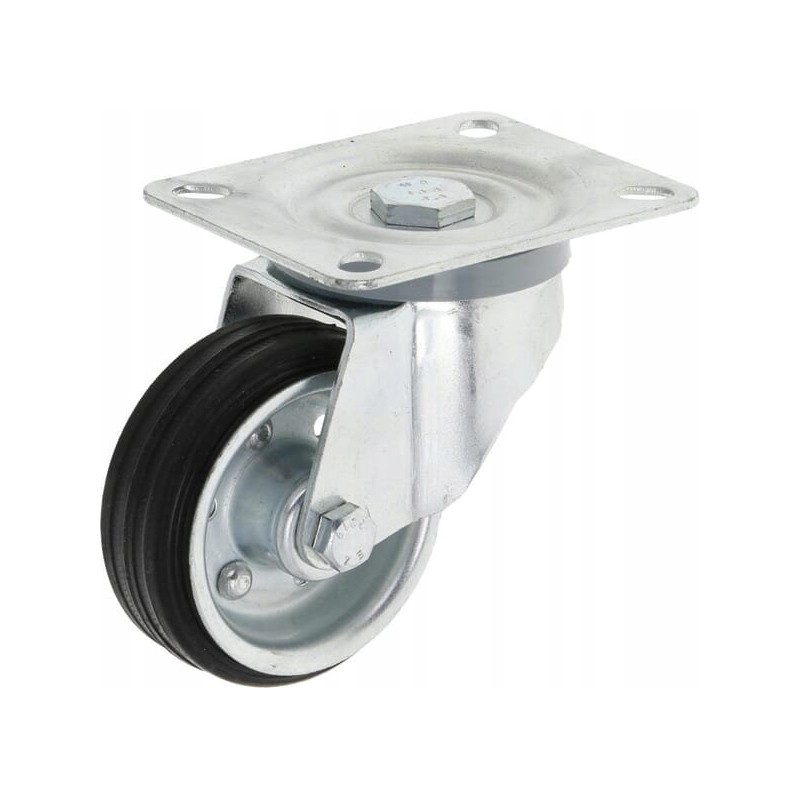

Rubber swivel wheel fi 80x30mm with mounting base

Rubber swivel wheel Ø 80x30 mm mounting base: 100x80 mm load capacity 75 kg Ro-Carr Parameters

Part number: WH508180

Unit: piece

Manufacturer: Ro-Carr

EAN: 8016931002909

Features: - Double swivel castor wheel

Wheel diameter: 80 mm

Wheel width: 30 mm

Type: Swivel wheel

Braked: No

Mounting type : Plate mounting

Maximum dynamic load: 75 kg

Total height: 104 mm

Body material: Steel

Wheel material: Rubber

Bearing type: Roller

Length of the mounting base: 100 mm

Width of the mounting base: 80 mm

Spacing of mounting holes - longer side: 80-80 mm

Spacing of mounting holes: 60-60 mm

Offset: 41 mm

Operating temperature min.: -20 °C

Operating temperature max.: +60 °C

Application

- Designed for ultimate loads Technical information

- Temperature range: -20 °C to +60 °C
