Agricultural full hd reversing kit for combine harvester

Reversing kit with HD recordingHigh image quality, SONY optics.

New in the offer!Reversing kit with Full HD recording.

SONY opticsAdvanced reversing kit with recording system is new in our offer.

Thanks to the use of 18 infrared emitters, the camera performs excellently even in complete darkness.

The design of the cameras allows for trouble-free, stable installation outside the vehicle, and the gland installed on the cable ensures sealing of the cable opening in the if drilling is necessary.

Many possibilities:1. Classic HD preview.

2. Reversing set with lines.

3. Preview from camera 1, preview from camera 2 with simultaneous loop recording from both sources.

4. Classic recorder. After 1 minute, the monitor turns off and records the image from the cameras.

5. Classic recorder. After 1 minute, the monitor turns off and records the image from the cameras. When the reverse light is turned on, the monitor wakes up and switches to the image from the reversing camera, automatically including the reversing lines.

High quality monitor, built-in systemThe monitor has a built-in operating system, thanks to which we can set many operating modes. The high-quality IPS matrix displays the image in HD.

The set is prepared for installation in both 12V and 24V installations. This is a very universal solution and can be installed in virtually any equipment.

Possibility of recording images. The camera has 18 built-in IR diodes with a light sensor that turns them on at a minimum illumination of 0 lux. The IP 69 tightness class allows the camera to be used even in the harshest weather conditions.

The set includes a 15-meter cable terminated with a hermetic plug on both ends. The advantages of this solution are trouble-free operation and relatively easy installation. Hermetic terminals are much more resistant to weather conditions and do not cause problems, unlike regular RCA connectors.

The camera power supply harness has a hermetic input and a module with a built-in anti-overvoltage system.

The device allows install memory cards up to 128GB!

Possibility to turn off the rewind lines. The set allows you to turn off the auxiliary rewind lines. Our equipment is one of the few that offers this option. Most cameras on the market have built-in lines without this option. Useful when the camera will only be used to preview the image.

The lines can be turned off directly in the menu.

Built-in heater

The built-in heater in the reversing camera ensures correct operation of the transducer even at very low temperatures, while preventing the lens from fogging up during rapid temperature changes (e.g. when you leave the warehouse in the frost).

Say enough to useless cameras that quickly absorb moisture, become fogged and prevent effective viewing of the vehicle's surroundings. Choose safety.

Real photo from the installation!High quality HD

Technical specifications of the monitor:

Monitor 7' color, 1/3' CMOS, 800x480, NTSC/PAL, 2 independent channels CH1/CH2 (4pin connector), contrast: 500:1, brightness: 350cd/m2

Card size (up to 128Gb)

Recording time: 128GB - 52h 64GB- 26h, 32GB- 13h, 16GB- 6.5h.

Recording resolution 1920x1080

Loop recording: YES

Smooth (brightness adjustment - color - contrast)

Display format 16:9

Menu language: English

Resolution 1024x600 IPS

External dimensions of the monitor 181 x 124 x 20mm

Weight 1000g

PAL/NTSC system automatically

Power consumption 5W

Power supply 9V-24V - (cables prepared for connection in installation)

Technical specifications of the camera with SONY optics:

Night vision function (IR diodes enable night vision)

Advanced SONY image sensor

Automatic white balance

IP69 tightness class

Weather-resistant, waterproof

Rotatable - vertical viewing angles adjustable

Sensor: 1/2.7' 2.1M CMOS

Number of pixels: 1928*1088

Video output: AHD (720P 25fps, 1080P 25fps)

Camera moisture resistance IP 67/68

Horizontal resolution: 480 lines

Twilight sensor and IR diodes

Minimum illumination color: 0.1 LUX/F1 .2 AGC ON

Minimum illumination night: 0.01 LUX/F1.2 AGC ON

Signal to noise ratio: <, 48dB

Video output: 1.0V (pp) / 75 Ohm

Operating temperature -30 to +75

Power supply: 9 ~ 24V

dimensions 85x65x45 (mm)

camera weight 245 grams

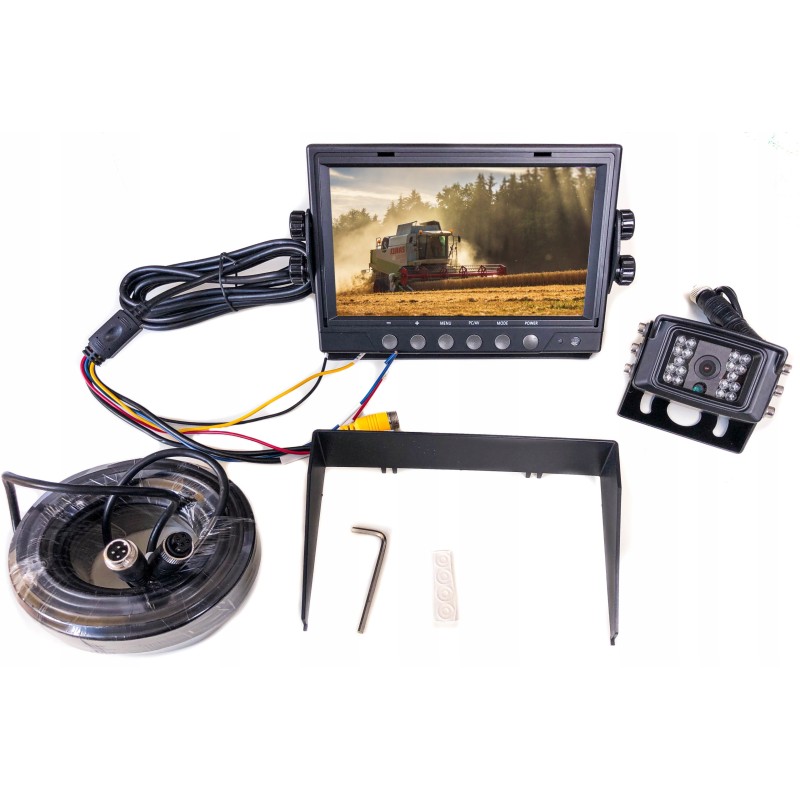

The set includes:

7' LCD monitor with recording

1x Camera with SONY optics and IR diodes< p>

1x 15m camera connection cable terminated with a hermetic plug

Monitor connection cable terminated with a hermetic plug

Remote control

Mounting accessories (stand, cables adhesive, etc.)

Purchase document

Polish distributor's warranty!!!

Instruction in Polish sent after purchase in PDF form
