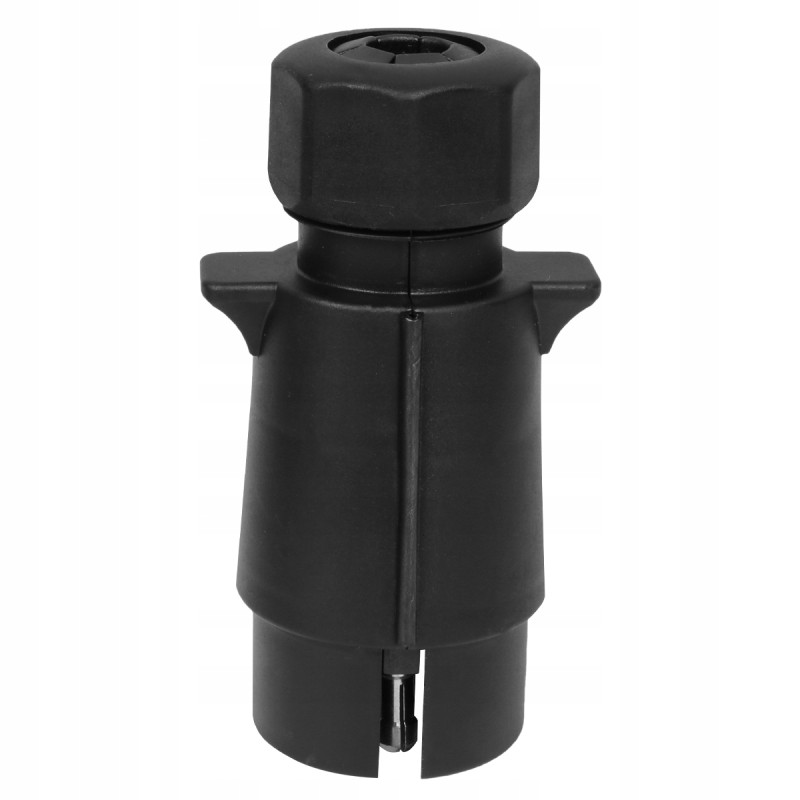

7 way truck connector plug

This 7 pin trailer plug connector, easy to use towing and hauling accessories, professional and practical, non-corrosive, shockproof design.

Feature Color: black

Material: plastic and metal

Design: 7-pole Operating voltage: 12Volt

Connection type: Screw contacts

Mounting hole diameter: 6 mm

Towing and pulling accessories

Professional and practical, non-corrosive, impact-resistant design

7 Contacts Lighting Connections12 N Black Wire Function PIN 1 Yellow Wire (Left/H Turn Signal) PIN 2 Blue Wire (Rear Fog Lights) PIN 3 White Wire (Return to Ground) PIN 4 Green Wire (Right/H Turn Signal) PIN 5 Brown Wire (Right/H Rear & rear) PIN 6 red wire (brake lights) PIN 7 black wire (left/H rear and parking light)

Connection mode: PIN 1 yellow wire (left/H Turn signal) PIN 2 blue wire (Rear fog lights) PIN 3 white wire (return to ground) PIN 4green wire (right/H turn signal) PIN Wire 5brown (right/H rear and rear) PIN Wire 6red (brake light) PIN Wire 7black (left/H rear and no)

Compare the detail sizes with yours, please allow 13 cm error, Due to manual measurement

packages

1 x 7-pin socket

1 x 7-pin trailer plug

1 x mounting bracket

1 x Gasket

3 x screws

7 x wire clamps
