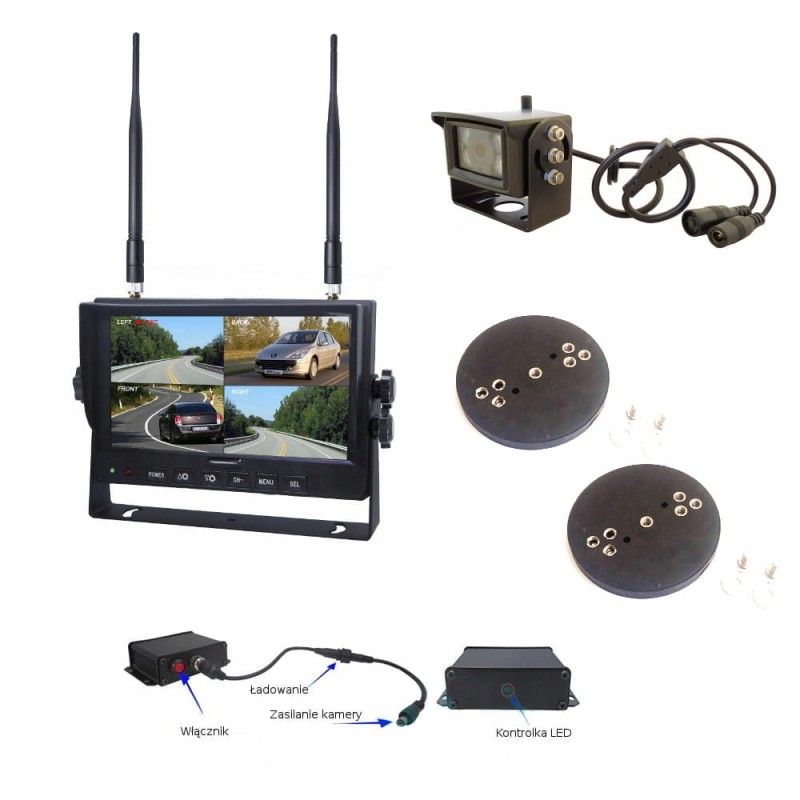

Wireless magnet forklift kit

Wireless digital set for forklifts, Expert AiR camera + Monitor 9' 12V/55V with DVR + battery box

High-quality wireless set with long-range digital image transmission.

SPECIALLY FOR FORKLIFTS, POSSIBILITY OF POWERING THE MONITOR from 10 V to 55 V

The device is designed to work in difficult conditions. Dedicated to forklifts.

The set consists of a high-quality color camera, built in a metal housing. The camera has 4 high-power white LEDs, so it can see a color image even in the dark. High-quality 1/3' CCD sensor with a resolution of 700 TVL ensures faithful color reproduction and high camera sensitivity.

Camera parameters:

Sensor: 1/3' CMOS

TV system: PAL NTSC

Effective pixels: 728 x 488

Image lines: 700 TVL

Built-in LEDs: 4 pcs

Day and night work: YES

Mirror image: YES (can be reversed on monitor)

Power consumption: 2.5W

Current consumption: 0.22A (12V)

Power supply: from 12 to 32V

Housing: Metal IP69

Connectors: DC, antenna

Operating frequency: 2400 -2483.5 MHz

Range in open areas: 120 meters

Compression: MPEG4

Transmission speed: 12Mbps

Lens f=2.8mm

Viewing angle 120°

Operating temperature: -20°C to +60°C

Camera dimensions:

Depth including the antenna 7.5 cm

Width with screws 9 cm

Height 6.8 cm

After lowering it as far down as possible on the handle and fastening it with one screw on each side and cutting off the protruding handles, you can lower the camera to 5.3 cm

The thickness of the magnet is about 1 cm (so the lowered camera with the magnet is about 6.3 cm high)

The digital color monitor from the Heavy Duty series with a 9" image diagonal and a built-in DVR image recorder works even in very difficult conditions. The sun visor ensures good vision in unfavorable lighting conditions in the cabin. The monitor is designed to support 4 digital wireless cameras. Markers can be displayed on the image from the rear camera to help determine the distance to an obstacle. Automatically dims or brightens the image depending on the lighting in the cabin. The anti-reflective screen coating ensures good vision even on very bright and sunny days. Thanks to the built-in loudspeaker, you can hear the sound transmitted from the camera, which is often helpful in communicating with colleagues - you can hear them well in a closed vehicle cabin.

The image on the monitor can be divided into four, three or two cameras in various configurations, and it also allows viewing from all cameras separately. The monitor is operated using touch buttons located under the screen. The set includes a remote control that operates all monitor functions.

Monitor parameters:

Image diagonal: 9'

Resolution: 800 x 3 (RGB) x 480

Contrast 500:1

Brightness 400 cd/m²

Viewing angle U:50 / D:70, R/L: 70

Spot 0.0642(W) x 0.1790(H)

Format 16:9

Channels 4 channels

Operating frequency 2400 – 2483.5 Mhz

Reception sensitivity -89 dBm

MPEG4 compression

Transmit output power 17 dBm

2.4G FSK/GF SK modulation

Delay 120 ms

Transmission distance 30-120 meters

Micro-SD/TF card support Max. 128G

PAL / NTSC format

Input voltage DC 10-55V

Current consumption Max. 6W

Speaker 1.5W/8Ώ

Operating temperature -20~+70ºC,RH90%

Storage temperature -30~+80ºC,RH90%

Additional cameras are available in the store (the monitor can support 4 pieces)

Battery Box is an independent power supply for a wireless camera.

The device includes:

battery module with a capacity of 2600 mAh / 12V,

cable powering the camera and charging the module,

car adapter for cigarette lighter

230V power supply

The Battery Box allows the camera to operate for approximately 10 hours, and 6 hours at night with the infrared on.

Of course, it all depends on the camera itself and its power consumption.

Module charging time approximately 3 hours.

Magnetic holder x 2 enabling quick installation of the camera and power module without the need to drill holes.

A strong neodymium magnet with a diameter of 80 mm is covered with a special rubber coating to prevent paint damage.

The holder has 7 threaded holes, which allows the installation of most cameras available on the market.

The set with the magnet includes two mounting screws and washers.

Quick assembly and disassembly of the camera or power module, irreplaceable when the camera is used on frequently changed semi-trailers, trailers, and where we do not want to drill holes for mounting screws, e.g. in forklifts.

Included:

magnetic holder

2 screws with washers
