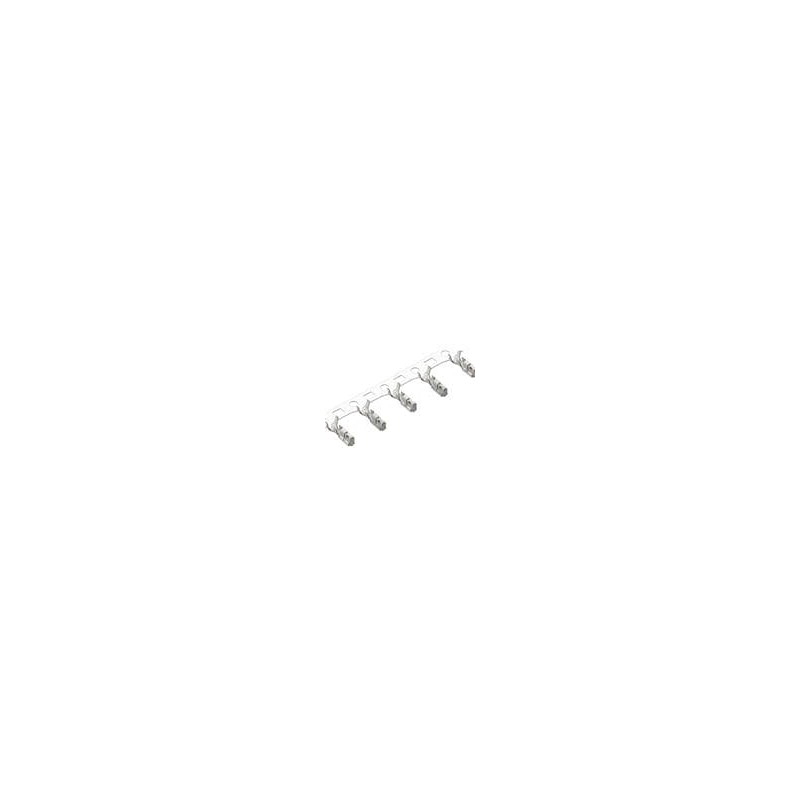

1 pcs : 56134-9001 - Terminals 2mm Crimp Terminal Female 22-24 AWG
    • 1 pcs : 56134-9001 - Terminals 2mm Crimp Terminal Female 22-24 AWG

    1 pcs : 56134-9001 - Terminals 2mm Crimp Terminal Female 22-24 AWG

    electronicparts-UK/M/538-56134-9001
    MOLEX
    £6.45
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    Micro-One Wire-to-Board Connectors with ISL Molex Micro-One Wire-to-Board Connectors with Integrated Independent Secondary Lock (ISL) ensure proper terminal insertion and prevent accidental back-outs. These features allow the Micro-One Wire-to-Board Connectors to achieve a secure electrical contact and improved mating retention in high-vibration applications. The series features a 2.00mm pitch low-profile design and high-reliability UL/CSA certified connectors. Molex Micro-One with ISL offers 250V maximum voltage, 4.0A maximum current, and 30 cycles minimum durability.
    Product Details
    MOLEX
    electronicparts-UK/M/538-56134-9001
    56134-9001
    10 Items

    Data sheet

    Manufacturer
    MOLEX
    Current rating
    4 A
    Contact material
    copper alloy
    Contact plating
    Tin
    Series
    56134
    Voltage Rating
    250 VAC/DC
    Mounting Style
    Cable Mount / Free Hanging
    Product Type
    Terminals
    Termination Style
    Crimp
    Product Category
    Terminals
    Packaging
    Cut Tape
    RoHS
    Details
    Brand
    Molex
    Product
    Wire to Board Terminals
    Factory Pack Quantity Factory Pack Quantity
    9000
    Subcategory
    Terminals
    Tradename
    Micro-One
    Unit Weight
    36 mg
    Part # Aliases
    561349001 0561349001
    Wire Gauge Min
    22 AWG
    Wire Gauge Max
    24 AWG
