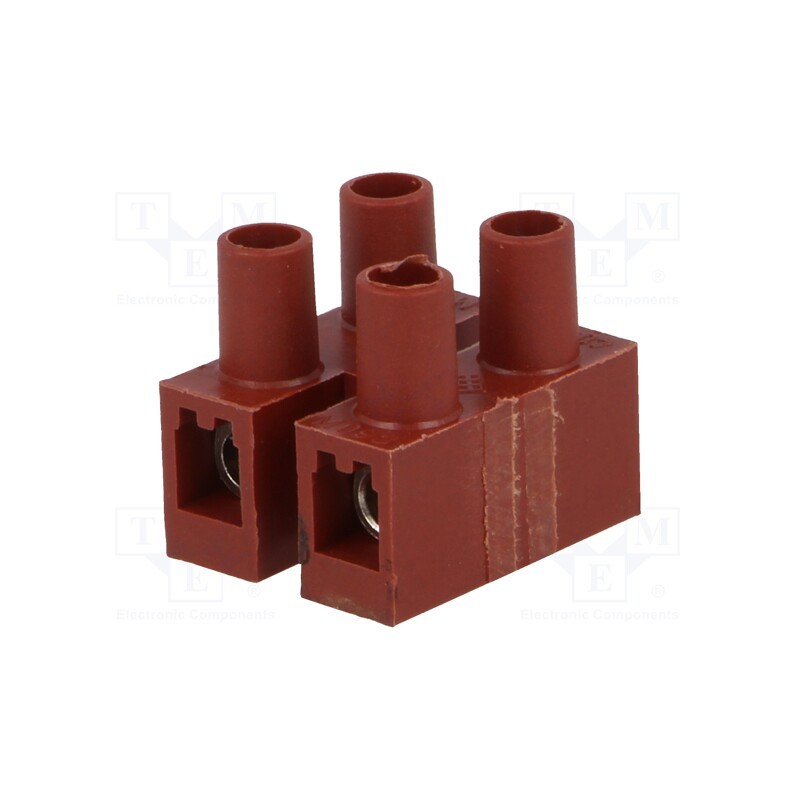

    5 pcs x BM GROUP - BM 93FS2 - Terminal block, screw terminal, 4mm2, 400V, ways: 2, terminals: 4
    • 5 pcs x BM GROUP - BM 93FS2 - Terminal block, screw terminal, 4mm2, 400V, ways: 2, terminals: 4

    5 pcs x BM GROUP - BM 93FS2 - Terminal block, screw terminal, 4mm2, 400V, ways: 2, terminals: 4

    5 x BM GROUP - BM 93FS2
    BM GROUP
    Terminal block, screw terminal, 4mm2, 400V, ways: 2, terminals: 4

    Manufacturer part number: BM 93FS2

    Allparts-uk Symbol: BM93FS2

    £10.40
    Delivery: 7-10 business days
    Quantity
    2514 Items

    Product Details
    BM GROUP
    5 x BM GROUP - BM 93FS2
    BM 93FS2
    2514 Items

    Data sheet

    Manufacturer
    BM GROUP
    Flammability ratingECE R-118
    This regulation applies to fire testing of materials used in the interiors of motor vehicles, such as upholstery, floor coverings, etc. UL94
    Rated voltageFor products in the Cables and Wires category, a digit/digit number indicates
    Rated volage U0/U where
    Operating temperature
    max. 150°C
    Conform to the norm
    CE CSA EN UL
    Width
    20.5mm
    Number of terminals
    4
    Height
    17.5mm
    Length
    16.7mm
    Body material
    polyamide, polyamide 66
    Colour
    brown
    Wire size
    18AWG...12AWG
    Contact material
    brass
    Contact plating
    nickel plated
    Mounting hole diameter
    3.3mm
    Mechanical mounting
    for cable, for panel mounting, mounting holes
    Connector variant
    with wire protector
    Electrical mounting
    screw terminal
    Wire cross-section
    4mm2
    Type of connector
    terminal block
    Number of ways
    2
    Connectors features
    may be easily broken into smaller fragments
