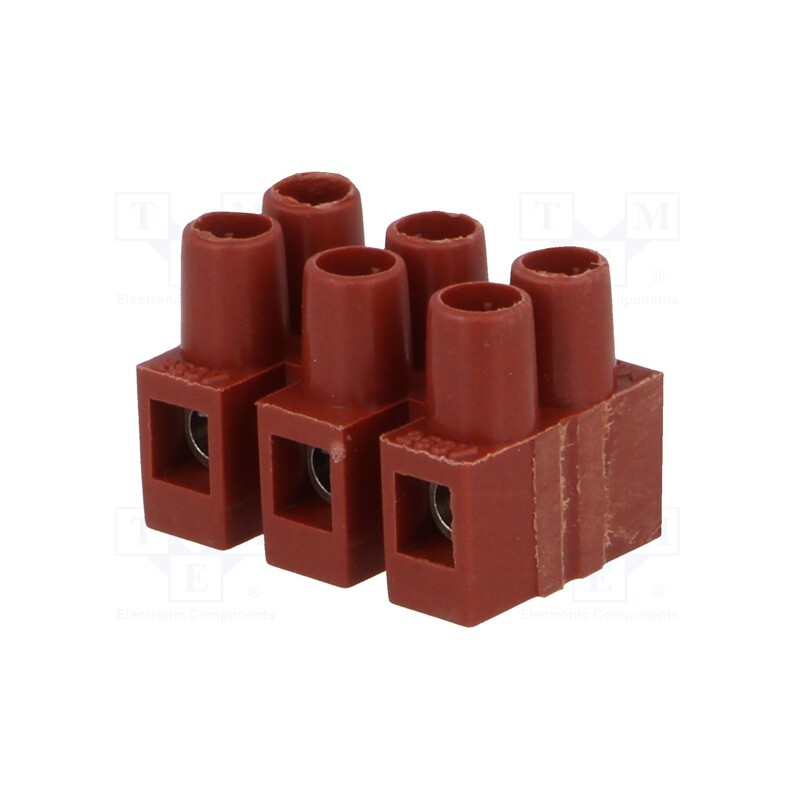

    20 pcs : BM 92FS3 - Terminal block, screw terminal, 2.5mm2, 250V, ways: 3, terminals: 6
    • 20 pcs : BM 92FS3 - Terminal block, screw terminal, 2.5mm2, 250V, ways: 3, terminals: 6

    20 pcs : BM 92FS3 - Terminal block, screw terminal, 2.5mm2, 250V, ways: 3, terminals: 6

    20(Allparts) BM92FS3
    BM GROUP
    Terminal block, screw terminal, 2.5mm2, 250V, ways: 3, terminals: 6

    Manufacturer part number: BM 92FS3

    Allparts-uk Symbol: BM92FS3

    £34.83
    Delivery: 7-10 business days
    Quantity
    5 Items

    Description
    Terminal block, screw terminal, 2.5mm2, 250V, ways: 3, terminals: 6

    Manufacturer part number: BM 92FS3

    Allparts-uk Symbol: BM92FS3

    Product Details
    BM GROUP
    20(Allparts) BM92FS3
    BM 92FS3
    5 Items

    Data sheet

    Manufacturer
    BM GROUP
    Flammability ratingECE R-118
    This regulation applies to fire testing of materials used in the interiors of motor vehicles, such as upholstery, floor coverings, etc. UL94
    Rated voltageFor products in the Cables and Wires category, a digit/digit number indicates
    Rated volage U0/U where
    Operating temperature
    max. 140°C
    Conform to the norm
    CE CSA EN UL
    Width
    15.2mm
    Number of terminals
    6
    Height
    15.3mm
    Length
    21.5mm
    Body material
    polyamide, polyamide 66
    Colour
    brown
    Wire size
    20AWG...16AWG
    Contact material
    brass
    Contact plating
    nickel plated
    Mounting hole diameter
    2.6mm
    Mechanical mounting
    for cable, for panel mounting, mounting holes
    Connector variant
    with wire protector
    Electrical mounting
    screw terminal
    Wire cross-section
    2.5mm2
    Type of connector
    terminal block
    Number of ways
    3
    Connectors features
    may be easily broken into smaller fragments
