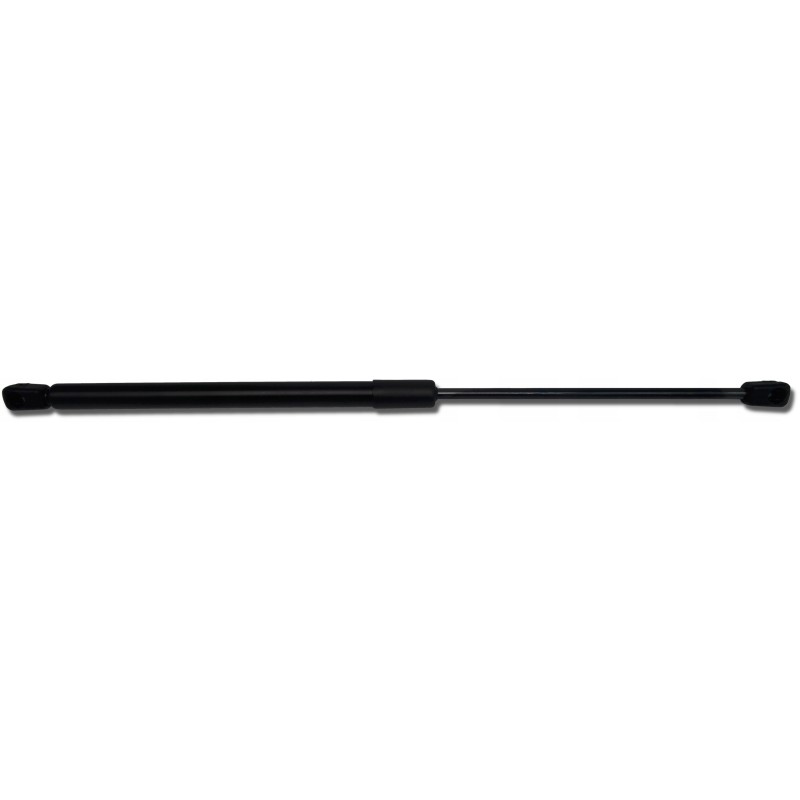

Telescope spring gas cylinder 515mm 360n same

SAMEKOD SKRAW-MET gas actuator: [3201]___________________________________________________________________________

Used in agriculture and specialized equipment, this model is compatible with SAME tractors:

Antares 100, Centauro 70, Centurion 75, Explorer 65, Explorer 70, Explorer 75, Explorer 80, Explorer II 70, Explorer II 80, Explorer II 90, Hercules 160, Jaguar 95, Leopard 85 Depending on the model, gas cylinders are adapted to work in: agricultural machines, tractors, sprayers, aurochs, cyclops, HDS loaders, construction machines, loaders, excavators , sweepers, industrial machines and others.

Application: SAME tractors.

Technical specifications: Length of the folded cylinder: 305mm

Length of the unfolded cylinder: 515 mm

Lift cylinder stroke: 210mm

Piston diameter: 8mm

Cylinder diameter: 18mm

Diameter of mounting pins : M8x1.25

Temperature range: -20°C to +70°C

Dimensions (including the folded or unfolded actuator) are measured from the center to the center of the hole or mounting thread.

Advantages of gas actuators: No power source.

Transmission of high force with relatively small dimensions.

Long service life and guarantee of failure-free operation of the actuator.

Very easy and quick installation.

Wide applications and versatility, from agricultural machines to furniture.

Adapted to work at various temperatures.

Telescopes are individually designed for each model. The whole thing is mounted to the factory technological holes of the vehicle, without the need for drilling or other processing.
