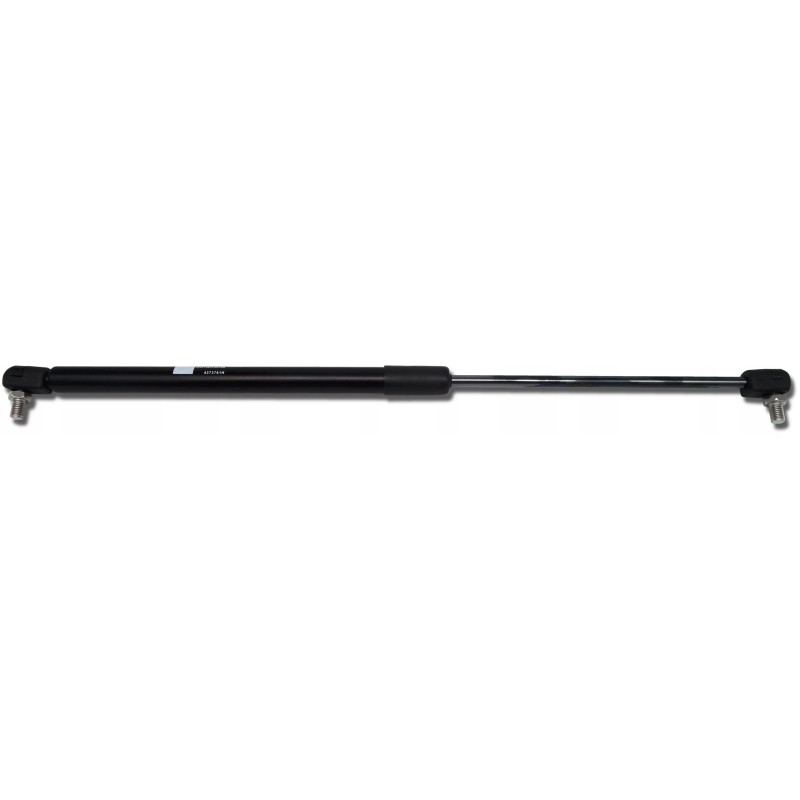

Telescope gas actuator 610mm 140n deutz doors

Door gas actuator in DEUTZ FAHR tractors SKRAW-MET code: [3197]_____________________________________________________________________

Used in agriculture and specialized equipment, this model is compatible with DEUTZ FAHR tractors

DX80, 85, 86, 90, 92, 110, 120, 145,4.10, 4.10SC, 4.30, 4.50, 4.50SC, 4.70, 6.05, 6.10, 6.30, 6.50, 7.10

Gas actuators are adapted, depending on the model, to work in: agricultural machines, tractors, sprayers, rounds, cyclops, HDS loaders, construction machines , loaders, excavators, sweepers, industrial machines and others.

Application: doors in DEUTZ FAHR tractors

Technical specifications: Length of the folded cylinder: 440 mm

Length of the unfolded cylinder: 610 mm

Cylinder stroke: 170 mm

Piston diameter: 8 mm

Cylinder diameter : 18mm

Diameter of mounting pins: M8x1.25mm

Temperature range: -20°C to +70°C

Dimensions (including the folded or unfolded actuator) are measured from the center to the center of the hole or mounting thread.

Advantages of gas actuators :No power source.

Transmission of high force with relatively small dimensions.

Long service life and guarantee of failure-free operation of the actuator.

Very easy and quick installation.

Wide use and versatility, from agricultural machines to furniture.

Adjusted to work at various temperatures. .

Telescopes are designed individually for each model. The whole thing is mounted to the factory technological holes of the vehicle, without the need for drilling or other processing.
