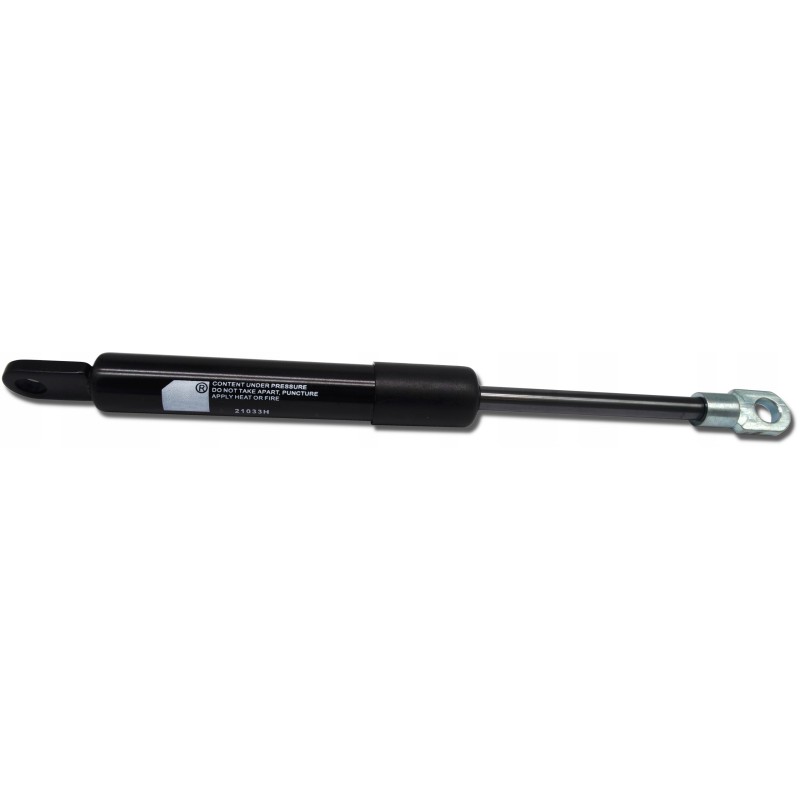

Telescope gas actuator 240mm 130n glass mf 3 mf4

Window gas actuator in URSUS tractors (MF)SKRAW-MET CODE: [3187]_____________________________________________________________________

Used in agriculture and specialized equipment, this model is compatible with URSUS tractors in models:

2812, 3512, 3514, 4512, 4514, 5312, 5314 , 5714

Gas actuators are adapted, depending on the model, to work in: agricultural machines, tractors, sprayers, rounds, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and others.

Application: windows in URSUS tractors (MF).

Technical specifications: Length of the folded cylinder: 160 mm

Length of the extended cylinder: 240 mm

Cylinder stroke: 80 mm

Piston diameter: 8 mm

Cylinder diameter: 18 mm

Bore diameter: 8 mm

Temperature range: -20°C to +70 °C

Dimensions (including the folded or unfolded actuator) are measured from the center to the center of the hole or mounting thread.

Advantages of gas actuators: No power source whatsoever.

Transfer of high force with relatively small dimensions.

Long service life and guarantee of failure-free operation. actuator operation.

Very easy and quick installation.

Wide use and versatility, from agricultural machines to furniture.

Adjusted to work at various temperatures.

Telescopes are designed individually for each model. The whole thing is mounted to the factory technological holes of the vehicle, without the need for drilling or other processing.
