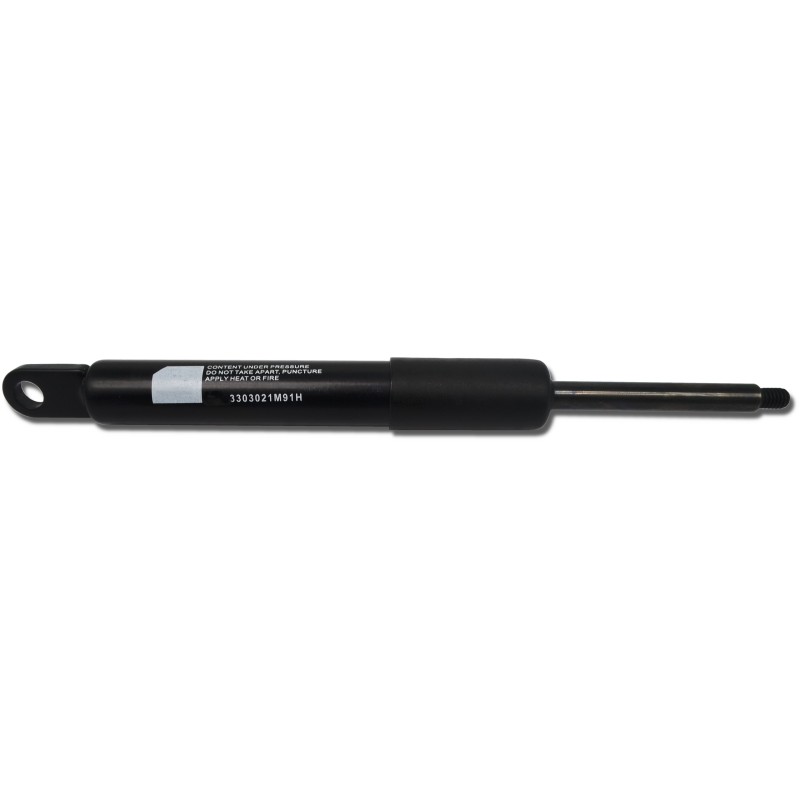

Telescope gas actuator 200mm 18n sunroof mf

Sunroof gas actuator for Massey Ferguson tractorsSKRAW-MET CODE: [3183]_____________________________________________________________________

Used in agriculture and specialized equipment, this model is compatible with Massey Ferguson tractors in models:

274, 294, 377, 387, 397, 675, 690, 698 , 699, 1004, 1007, 1014, 1024, 2620, 2625, 2640, 2645, 2680, 2685, 2720, 2725, 3050, 3060, 3070, 3075, 3080, 3085, 3090, 3095, 3115, 3120, 3125, 3610 , 3630, 3635, 3645, 3650, 3655, 3670, 3680, 3690, 6120, 6130, 6140, 6150, 6160, 6170, 6180, 6190, 6260, 6265, 8110, 8120, 8130, 8140, 8150, 8160, 8170 , 8180, 8210, 8220, 8240, 8250, 8260, 8270, 8280.

Gas cylinders are adapted, depending on the model, to work in: agricultural machines, tractors, sprayers, tourers, cyclops, HDS loaders, construction machines, loaders, excavators , sweepers, industrial machines and others.

Application: sunroof of Massey Ferguson tractors.

Technical specifications: Length of the folded cylinder: 140 mm

Length of the unfolded cylinder: 200 mm

Cylinder stroke: 60 mm

Piston diameter: 8 mm

Cylinder diameter: 18 mm

Hole diameter: 8mm

Temperature range: -20°C to +70°C

Dimensions (including folded or unfolded actuator) are measured from the center to the center of the hole or mounting thread.

Advantages of gas actuators: No power source required.

Transfer of high force with relatively small dimensions.

Long service life and guarantee of failure-free operation of the actuator.

Very easy and quick installation .

Wide use and versatility, from agricultural machinery to furniture.

Adjusted to work at various temperatures.

Telescopes are designed individually for each model. The whole thing is mounted to the factory technological holes of the vehicle, without the need for drilling or other processing.
