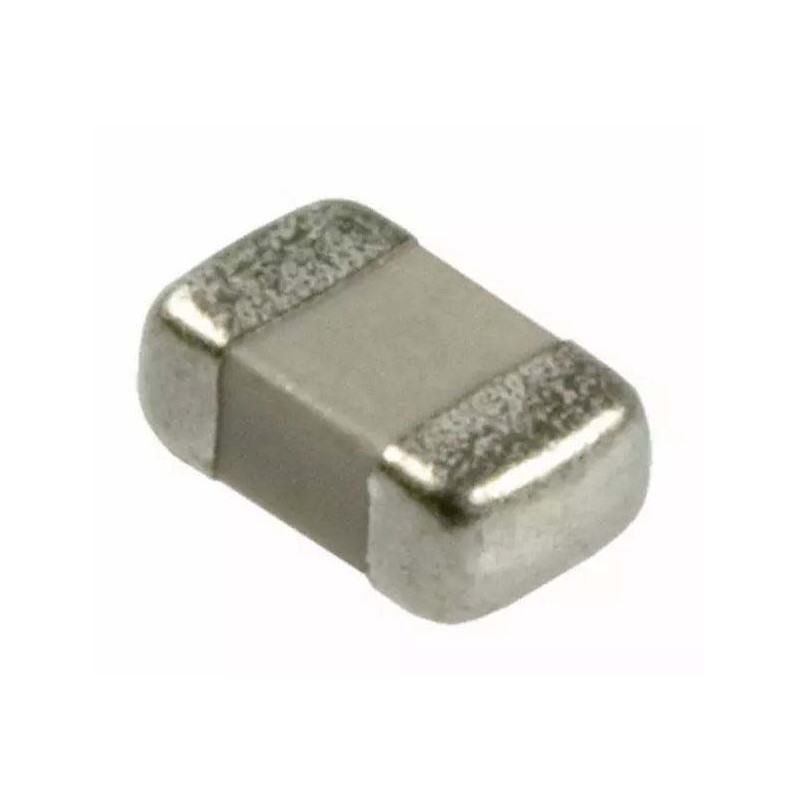

20 pcs - TACR106M016XTA KYOCERA AVX 10μF Electrolytic Tantalum Capacitor 16V dc, TAC Series
    • 20 pcs - TACR106M016XTA KYOCERA AVX 10μF Electrolytic Tantalum Capacitor 16V dc, TAC Series

    20 pcs - TACR106M016XTA KYOCERA AVX 10μF Electrolytic Tantalum Capacitor 16V dc, TAC Series

    20(Allparts)1442525
    20 pcs - TACR106M016XTA KYOCERA AVX 10μF Electrolytic Tantalum Capacitor 16V dc, TAC Series
    £65.76
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    AVX is the number one tantalum capacitor supplier with four manufacturing plants worldwide, which provides flexibility and capacity for the demanding electronic industry. AVX is the global leader in MnO2 solid tantalum technologies such as smallest case size MnO2, highest temperature capabilities up to 230°C and lowest DCL product offering. AVX has the industry leading position in high reliability tantalum capacitors and is the largest supplier of high reliability solid tantalum capacitors for medical and military/aerospace applications with the industry’s widest range of medical, COTS-Plus, MIL spec and space level products.AVX Conformal technology offers leading edge solutions for audio and infrastructure applications.AVX has an open and progressive policy on ethical supply and is first to be in compliance with OECD guidelines and legislation on conflict materials.Standard and Low Profile case sizes are availableThe TAC series is well suited for industrial and medical applications. TACmicrochip® is a major breakthrough in miniaturisation without reduction in performance. It offers the highest energy store in a small case sizes.
    Product Details
    KYOCERA AVX
    20(Allparts)1442525
    TACR106M016XTA
    10 Items

    Data sheet

    Manufacturer
    KYOCERA AVX
    Capacitance
    10µF
    Tolerance
    ±20%
    Dimensions
    2 x 1.35 x 1.35mm
    Leakage current
    1.6 μA
    Height
    1.35mm
    Length
    2mm
    Depth
    1.35mm
    A-Supplier
    Allparts-UK/15/R-11
    Series
    TAC
    Terminal Type
    SMT
    Maximum Operating Temperature
    +125°C
    Mounting Type
    Surface Mount
    Minimum Operating Temperature
    -55°C
    Voltage
    16V dc
    Technology
    Electrolytic
    Package/Case
    0805 (2012M)
    Equivalent Series Resistance
    Polarised
    Polar
    Lead Pitch
    0.7mm
    Electrolyte Type
    Solid
    Dielectric Material Family
    Tantalum
    Tolerance Minus
    -0.2
    Tolerance Plus
    0.2
    Dissipation Factor
    10%
    Surge Voltage
    20 V @ ≤+85°C
