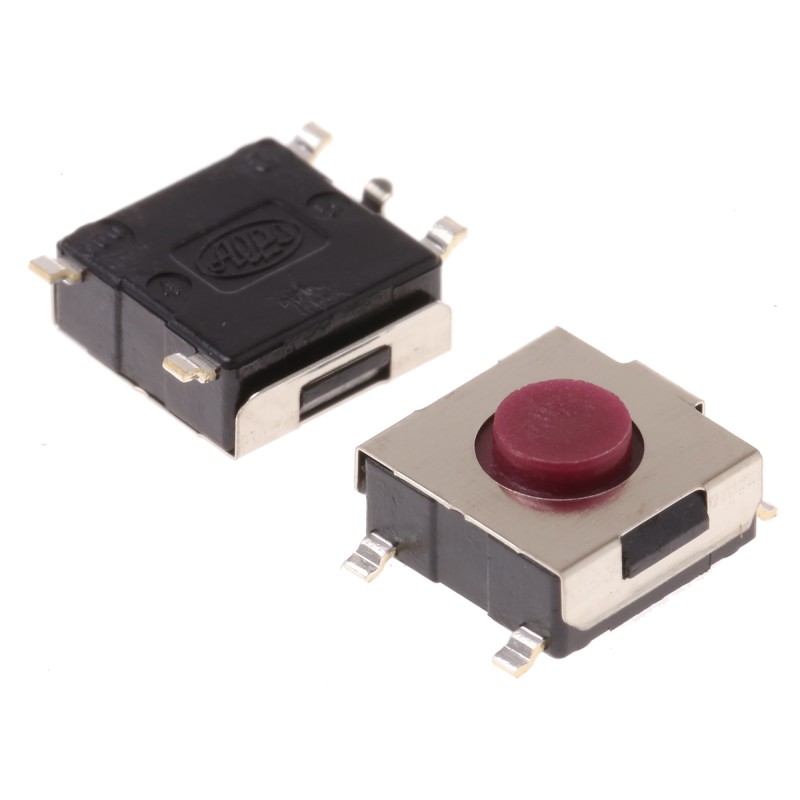

    50 pcs - SKHMQME010 Red Stem Tactile Switch, SPST 50 mA @ 12 V dc 3.1mm Surface Mount
    • 50 pcs - SKHMQME010 Red Stem Tactile Switch, SPST 50 mA @ 12 V dc 3.1mm Surface Mount

    50 pcs - SKHMQME010 Red Stem Tactile Switch, SPST 50 mA @ 12 V dc 3.1mm Surface Mount

    50(Allparts)7582035
    50 pcs - SKHMQME010 Red Stem Tactile Switch, SPST 50 mA @ 12 V dc 3.1mm Surface Mount
    £59.66
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    Alps SMT Tact Switches - SKHM, SKPM, SKQG & SKRA SeriesAlps Tactile or Tact switches are SPST snap action switches to be used with small currents. This series also provide a minimum rating of 10 μA at 1 V dc and a maximum rating of 50 mA at 12 V dc. These Tact switches have SMT terminals, low contact resistance, high contact reliability and come in a wide selection of operating forces and switching travels.The SKPM series of Tact switches have a soft operating feel while the SKHM, SKQG and the SKRA series have a sharp operating feel.Wide range of operating forcesVertical operating directionLong lifeLow contact resistance 100mΩInsulation resistance >,100MΩ at 100VdcSKHM series are fitted with a ground terminalSKPM, SKQG and SKRA series are suitable for use in automotive applicationsTactile
    Product Details
    Alps Alpine
    50(Allparts)7582035
    SKHMQME010
    10 Items

    Data sheet

    Manufacturer
    Alps Alpine
    Dimensions
    6.5 x 6.2 x 3.1mm
    Width
    6.2mm
    Height
    3.1mm
    Length
    6.5mm
    A-Supplier
    Allparts-UK/15/R-14
    Voltage Rating
    12V dc
    Terminal Type
    Surface Mount
    Maximum Operating Temperature
    +85°C
    Mounting Type
    Surface Mount
    Minimum Operating Temperature
    -30°C
    Contact Configuration
    SPST
    Operating Temperature Range
    -30 - +85°C
    Actuator Type
    Stem
    Contact Current Rating
    50 mA @ 12 V dc
    Mechanical Life
    200000Cycles
    Switch Operation
    Momentary
    Actuator Colour
    Red
