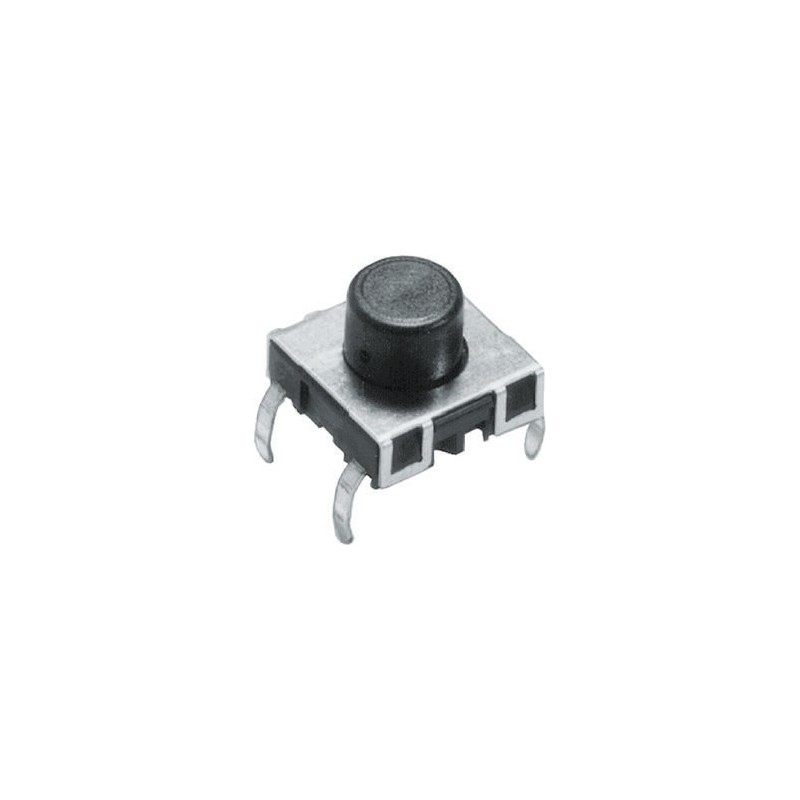

    10 pcs - 1241.1614 IP40 Tactile Switch, SPST 50 mA @ 42 V dc
    • 10 pcs - 1241.1614 IP40 Tactile Switch, SPST 50 mA @ 42 V dc

    10 pcs - 1241.1614 IP40 Tactile Switch, SPST 50 mA @ 42 V dc

    10(Allparts)6077113
    SCHURTER
    10 pcs - 1241.1614 IP40 Tactile Switch, SPST 50 mA @ 42 V dc
    £55.76
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    Schurter THT Tact Switches - PMS SeriesThrough hole mounting tact switches suitable for Wave soldering. The Schurter PMS series of tact switches are available in a choice of IP40 or IP67 protection, the IP67 versions have the benefit of being able to be exposed to soldering and cleaning processes. These tact switches require a minimum spacing of 12.7mm to 15mm, have a miniature push button with a tactile response and an actuation force of 1.8 ±0.4N for IP40 versions and 2.2 ±0.4N for IP67 versions.Momentary switching actionMaximum switching voltage: 30Vac, 42VdcMaximum switching current: 50mARated breaking capacity: 0.12WContact material: GoldLife: >,1 x 106 cyclesOperating temperature: -40 to + 85°CTactile
    Product Details
    SCHURTER
    10(Allparts)6077113
    1241.1614
    10 Items

    Data sheet

    Manufacturer
    SCHURTER
    Dimensions
    11.40 x 11.40 x 7.60mm
    Width
    11.4mm
    Height
    7.6mm
    Length
    11.4mm
    IP rating
    IP40
    A-Supplier
    Allparts-UK/15/R-14
    Terminal Type
    Through Hole
    Maximum Operating Temperature
    +85°C
    Minimum Operating Temperature
    -40°C
    Contact Configuration
    SPST
    Contact Current Rating
    50 mA @ 42 V dc
    Mechanical Life
    1000000Cycles
    Illuminated
    No
