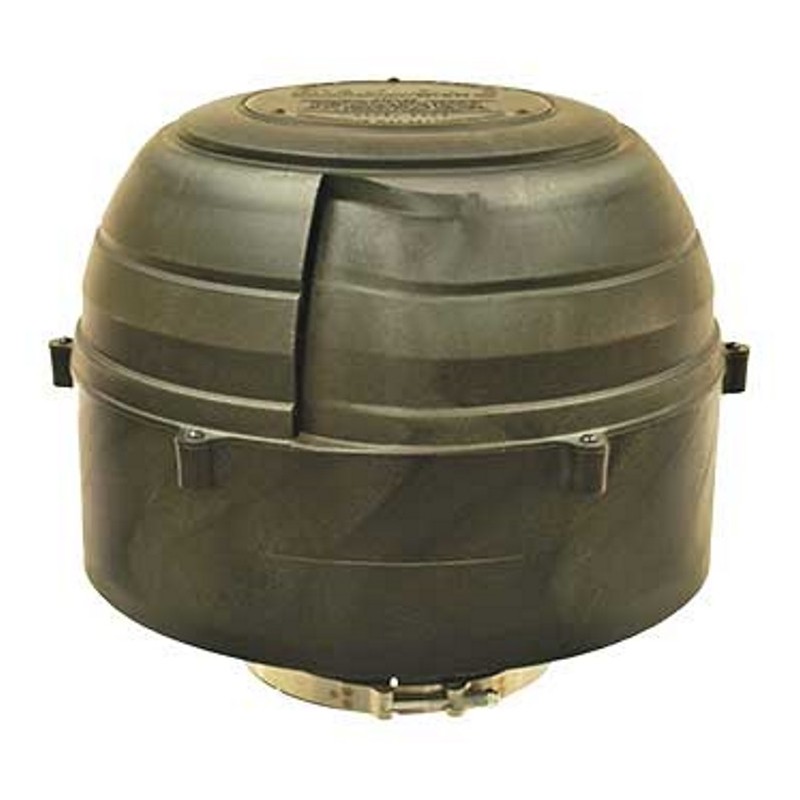

Sy Klone 9003 filter

Sy-klone 9003 air filter

8-inch (203.2 mm) inlet.

Air flow from 22.65 to 32.56 m3/min

Filter life is closely related to the amount of dust drawn through the engine air intake port. Installing a Sy-Klone Series 9000 PRE-FILTER as the first stage in the air supply traps most of the particles heavier than air and throws them outside, preventing them from reaching the main filter and the engine. As a result, the life of the filters is extended, the engine runs more efficiently and economically, and the expenses for servicing the machine are reduced. The savings calculator for the 9000 Series best shows your savings.

Benefits:

Extends the life of the air filter, which increases effective operating time,

Copes great with all types of mixed dust, including mud, snow, rain, leaves, sawdust, chaff and regular dust.

Lower cost of an hour of work resulting from reduced costs of parts, their replacement and downtime,

Lower air resistance increases engine power and reduces fuel consumption,

Ease of installation - just check our FILTER Selection Wizard to see which model and which installation kit is the best for your machine.

Claims under our lifetime warranty are virtually non-existent.

Durable polymer construction gives the strength of steel (without its corrosion), costs as much as plastic, and the matte surface is non-reflective and does not distract the operator.

Principle of operation :

1. Air enters from the bottom of the dome through an inlet screen, which prevents dirt larger than the width of the discharge slot from entering the dome.

2. Curved rotor blades throw debris into the outer orbit of the toroidal dome.

3. Guides on the inner surface of the dome catch contaminants heavier than air and move them towards the discharge slot.

4. Clean air continues to flow upwards until the dome shape refracts the air flow and directs it to the engine air intake opening.

Construction:

Installation and device types: PRE-FILTER can be mounted on all vertical and horizontal air filter housings, on all machines, replacing external standing and lying pre-filters and internal pre-filters.

Construction: A specially designed polymer gives extraordinary strength and resistance to steel, while still weighing as much as ordinary plastic. The patented, specially sealed bearing chamber protects it from dust and moisture and prevents corrosion. A 20% lubricant concentration instead of the typical 10-15% concentration ensures that the 9000 Series filter operates in the coldest conditions - down to -40°C. Learn about the patented technology that makes SY-KLONE PRE-FILTERS unique products on a global scale.

PRE-FILTER SERVICE: The filter is self-cleaning and does not require routine inspection because no dust particles are trapped inside. See how our patented technology works.

Recommended use: Field conditions, construction, mining, forestry, landfills and landfills, agriculture, military, road construction and anywhere where any dust is present.

Dust types: The 9000 Series Filter throws out all types of mixed particles, including mud, snow, rain, leaves, sawdust, chaff and normal dust. There is the only PRE-FILTER available on the market that, in addition to dry dust, also removes wet particles, snow or sleet.

Protective screens: A standard protective screen is sufficient protection in most situations and prevents the filter from blocking by preventing particles that are larger than the discharge opening. In extreme winter weather, the protective screen can be lowered to prevent falling snow from sticking to the mesh. In case of heavy dust particles, the perforated metal protective screen is recommended for places where the particles have a large diameter, especially in landfills and when cutting wood. .

Agricultural screen is ideal for fine dusts such as chaff.
