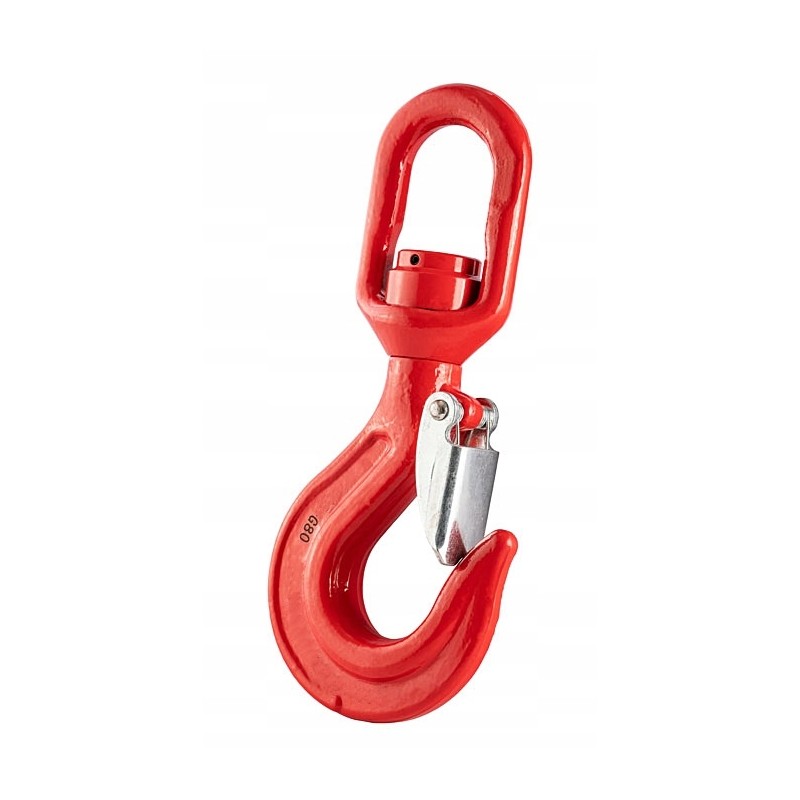

Ball-bearing swivel hook 1 12t HDS crane CE approved

BEARING-BEARED SWIVEL HOOK WITH PAWL DOR: 1,120 kg/1.12 tons

DESIGN:

Hook with a swivel-type swivel link on a ball bearing, which allows it to rotate freely around its own axis while maintaining an even load with the possibility of compensating for axial play. The hook is made of drop-forged alloy steel in strength class 8. The hook has a spring pawl that protects against unfastening of the rope or other string under load, making it extremely safe to use.

THE HOOK MEETS THE STANDARD: EN 1677

SAFETY FACTOR: 4:1

APPLICATION:

For chain, rope and textile slings, for lifting equipment, in the oil and gas industry, as well as in other industries where heavy lifting is required in complete safety. They are suitable for use in the temperature range from -40 ° C to 200 ° C without reducing the working load limit

AVAILABLE COLORS: RED, YELLOW

= >, */ colors are available depending on the current batch in stock, in case of color selection necessary message / inquiry / to the seller about the possibility of delivery in the expected color

DIMENSIONS OF THE ROTATING RATCHET HOOK:

PROPERTIES:

Hook made of high-quality alloy steel [ALLOY]. Class 80 (forged and hardened)

For use with overhead crane, crane, crane, with class 80 sling chain, winch....

Hook marking: manufacturer code, WLL, size, CE

Proof load [MPF] tested up to 2 .5 x WLL in relation to the load limit 4:1

Operating range at temperatures from -40 ° C to 200 ° C without lowering the working load limit

Extreme load [breaking force] is four times greater

Each hook has:

Marking: code manufacturer / Max strength: WLL … T / CE / hook size

Documentation: Certificate in paper version on request
