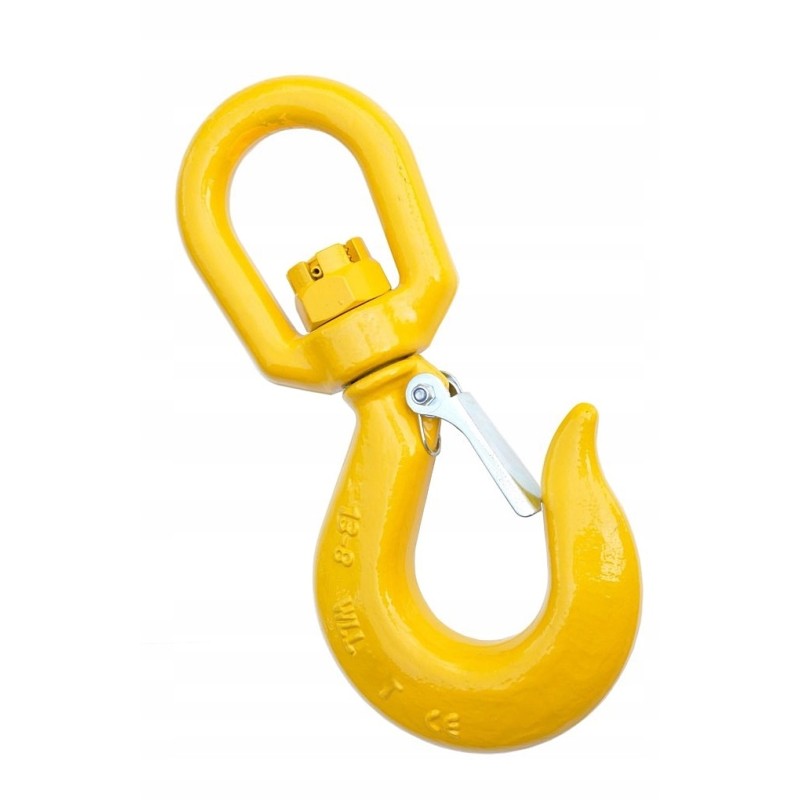

Swivel hook 3 15 t sling crane crane CE approved

ROTATING RATCHET HOOK DOR/WLL: 3,150 kg/ 3.15 tons DESIGN:

Hook with a swivel-type rotary link that allows it to rotate freely around its own axis while maintaining an even load with the possibility of compensating for longitudinal play by connecting the hook to the swivel with a crown nut and a cotter pin . The hook is powder-coated in yellow or red / shipping color depends on delivery / made of drop-forged alloy steel in strength class 8. The hook has a spring pawl that prevents the rope or other string from being released under load, making it extremely safe to use.

HOOK SATISFIES STANDARD: EN 1677

SAFETY FACTOR: 4:1

APPLICATION:

For chain, rope and textile slings, for lifting equipment, in the oil and gas industry, as well as in other industries where lifting of loads is required in full safety . Suitable for use in the temperature range from -40°C to 200°C without reducing the working load limit

DIMENSIONS OF RATCHET SWIVEL HOOK:

PROPERTIES:

Hook made of high quality [ALLOY] alloy steel. Class 80 (forged and hardened)

For use with overhead crane, crane, crane, with class 80 sling chain, winch ....

Hook marking: manufacturer's code, WLL, size, CE

Proof load tested [MPF] up to 2 .5 x WLL in relation to the load limit 4:1

Operating range at temperatures from -40 ° C to 200 ° C without lowering the working load limit

Extreme load [breaking force] is four times greater

Each hook has:

Marking: code manufacturer / Max strength: WLL … T / CE / hook size

Documentation: Certificate in paper version on request
