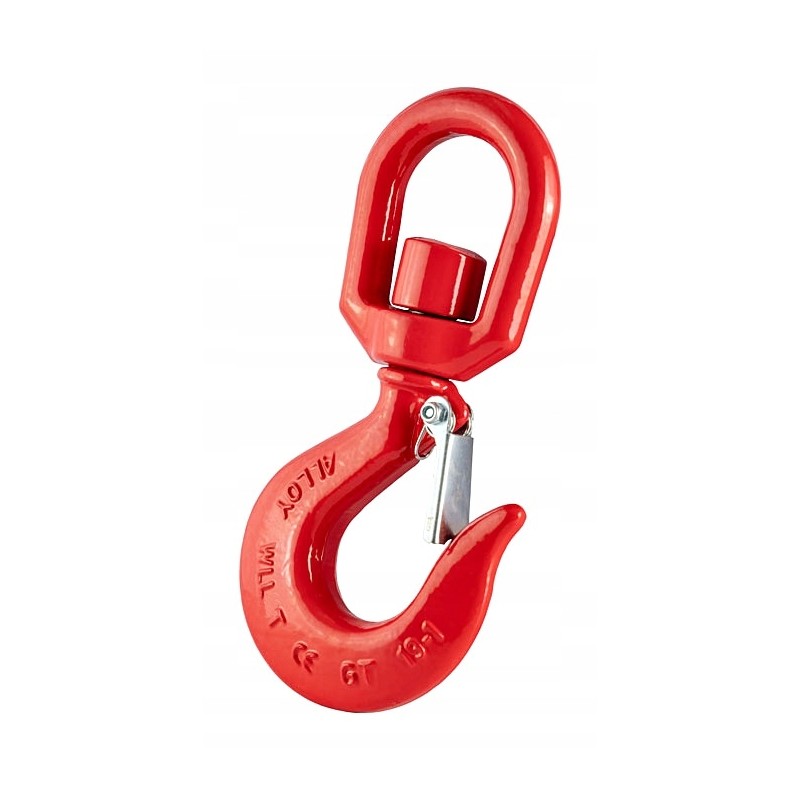

Swivel hook 2000kg 2t crane sling certified

ROTATING RATCHET HOOK DOR: 2,000 kg/ 2.0 tons. EXECUTION: Hook with a swivel type swivel link that allows it to rotate freely around its own axis while maintaining an even load, hook and swivel connection welded. The hook is powder-coated in red, made of drop-forged alloy steel, strength class 8. The hook has a spring pawl that prevents the rope or other cord from being released under load, making it extremely safe to use.

THE HOOK MEETS THE STANDARD: EN 1677

SAFETY FACTOR: 4:1

APPLICATION: For chain, rope and textile slings, for lifting equipment, in the oil and gas industry, as well as in other industries where heavy lifting is required in complete safety. Suitable for use in the temperature range from -40°C to 200°C without reducing the working load limit

DIMENSIONS OF RATCHET SWIVEL HOOK:

PROPERTIES:

Hook made of high quality [ALLOY] alloy steel. Class 80 (forged and hardened)

For use with overhead crane, crane, crane, with class 80 sling chain, winch....

Hook marking: manufacturer code, WLL, size, CE

Proof load [MPF] tested up to 2 .5 x WLL in relation to the load limit 4:1

Operating range at temperatures from -40 ° C to 200 ° C without lowering the working load limit

Extreme load [breaking force] is four times greater

Each hook has:

Marking: code manufacturer / Max strength: WLL … T / CE / hook size

Documentation: Certificate in paper version on request
