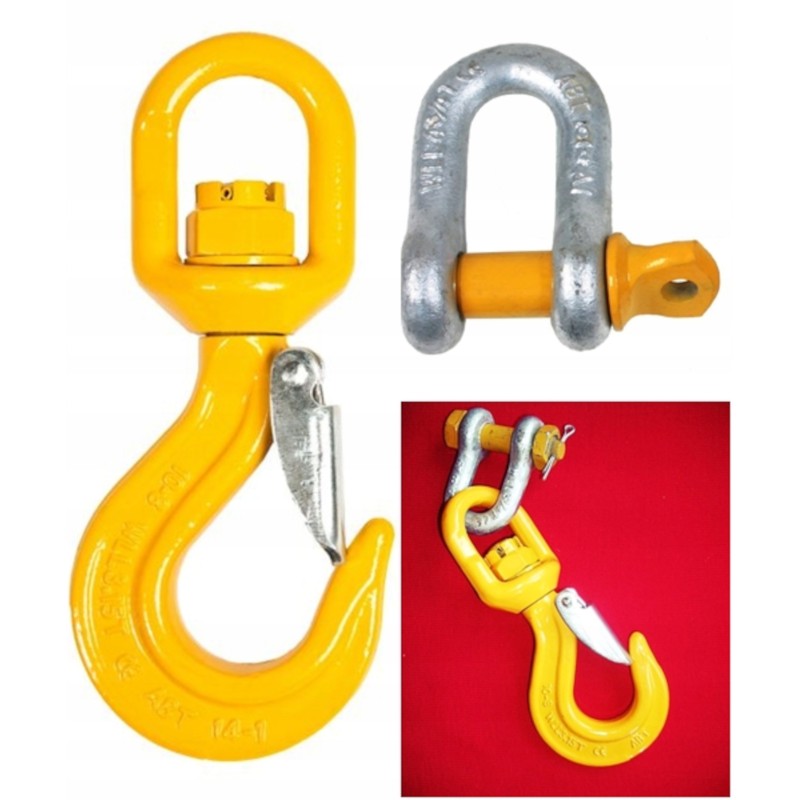

Swivel hook 2 t shackle 2 t set approved

ROTATING RATCHET HOOK DOR: 2.0 t + SHOCK 2.0 t SET EXECUTION: The hook has a swivel link, the swivel allows it to rotate freely around its own axis. Powder-coated hook, made of drop-forged steel, hardened, strength class 8. The hook has a latch that prevents the rope from coming undone. Additionally, a certified shackle.

THE HOOK MEETS THE STANDARD: EN 1677

SAFETY FACTOR: 4:1

APPLICATION:

For chain, rope and textile slings, for lifting equipment

RATCH HOOK DIMENSIONS:

A (mm): 36.0

B ( mm): 29.0

H (mm): 24.0

K (mm): 186.0

E (mm): 34.0

· SET WEIGHT: 1.54 kg

AVAILABLE COLORS: yellow, red / depends on delivery/

PROPERTIES:

Made of the hook from high-quality alloy steel. Class 80 (forged and hardened)

For use with overhead crane, crane, crane, with class 80 sling chain, winch....

Hook marking: manufacturer code, WLL, size, CE

Proof load [MPF] tested up to 2 .5 x WLL in relation to the load limit 4:1

Operating range at temperatures from -40 ° C to 200 ° C without lowering the working load limit

Extreme load [breaking force] is four times greater

Each set / hook + shackle / has :

Marking: manufacturer's code / Max strength: WLL/DOR T / CE /

Documentation: Certificate in paper version on request
