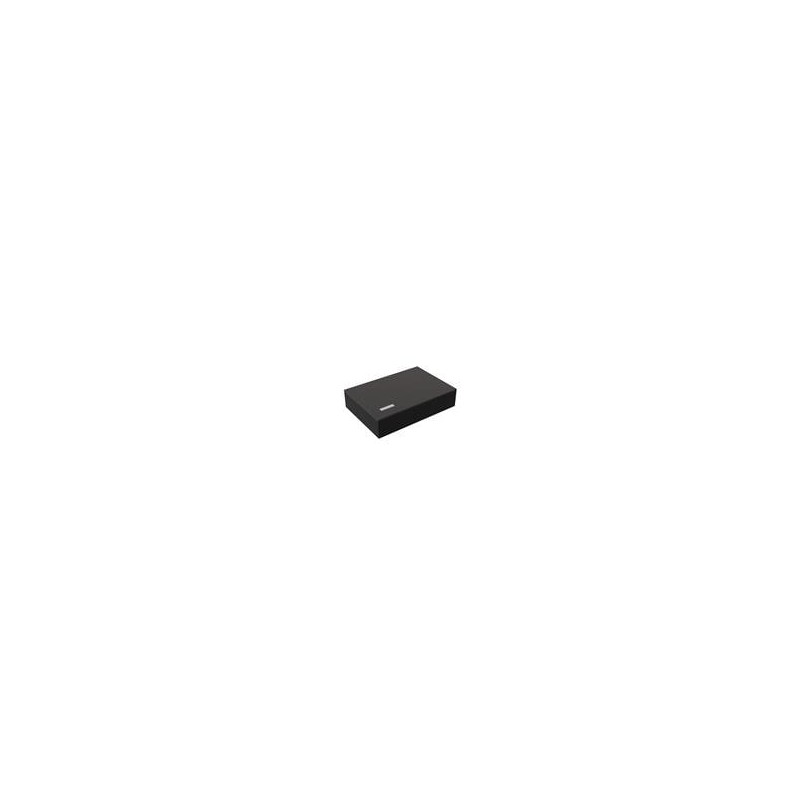

1 pcs : RP519Z121B-E2-F - Voltage Regulators - Switching Regulators 0.5A/1A 6MHz PWM/VFM Step-down DCDC Converter with Synchrono
    • 1 pcs : RP519Z121B-E2-F - Voltage Regulators - Switching Regulators 0.5A/1A 6MHz PWM/VFM Step-down DCDC Converter with Synchrono

    1 pcs : RP519Z121B-E2-F - Voltage Regulators - Switching Regulators 0.5A/1A 6MHz PWM/VFM Step-down DCDC Converter with Synchrono

    electronicparts-UK/M/848-RP519Z121B-E2-F
    Nisshinbo
    £12.51
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    RP519Z PWM/VFM Step-down DC/DC Converters Nisshinbo RP519Z Series 0.5A/1A PWM/VFM Step-down DC/DC Converters with Synchronous Rectifier offers synchronous rectification for improving rectification efficiency. This is achieved by replacing diodes with built-in switching transistors. Circuit performance is increased using synchronous rectification by allowing a design to reduce parts count. The current limit and thermal shutdown circuits are protection circuits for the RP519Z. High-density mounting on boards is achieved in the WLCSP−6−P8 package.
    Product Details
    Nisshinbo
    electronicparts-UK/M/848-RP519Z121B-E2-F
    RP519Z121B-E2-F
    10 Items

    Data sheet

    Manufacturer
    Nisshinbo Micro Devices
    Series
    RP519Z
    Maximum Operating Temperature
    + 85 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    SMD/SMT
    Type
    Step-Down DC/DC Converter
    Output Current
    1 A
    Product Type
    Switching Voltage Regulators
    Package/Case
    WLCSP-4
    Product Category
    Voltage Regulators - Switching Regulators
    Packaging
    MouseReel
    RoHS
    Details
    Supply Voltage - Min
    2.3 V
    Brand
    Nisshinbo
    Factory Pack Quantity Factory Pack Quantity
    5000
    Subcategory
    PMIC - Power Management ICs
    Operating Supply Current
    15 uA
