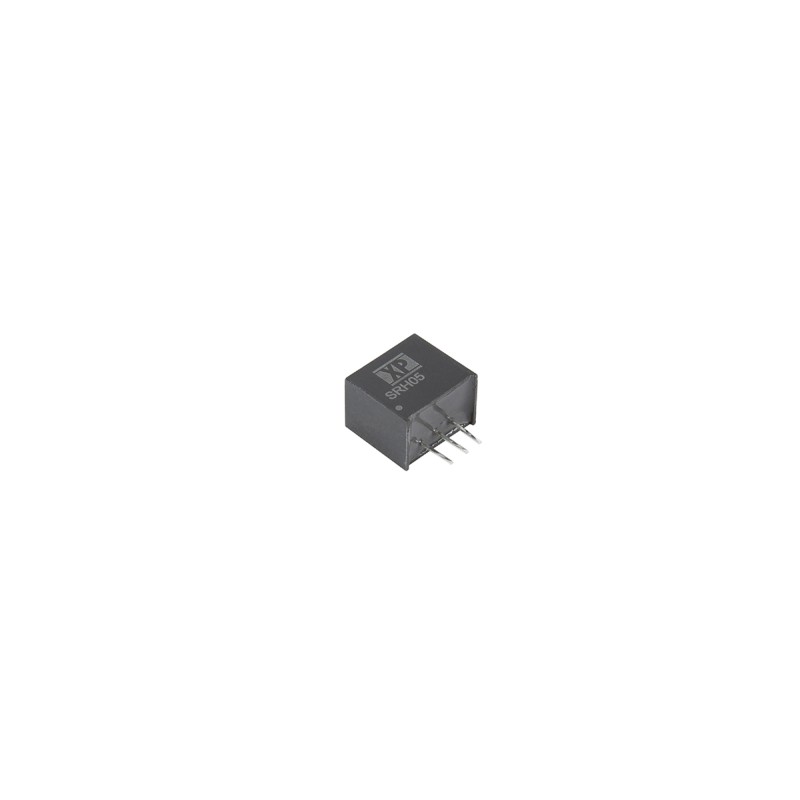

1 Tube of 40 - XP Power DC-DC Switching Regulator, Through Hole, 5V dc Output Voltage, 9 - 72V dc Input Voltage, 500mA Output

Data sheet

Manufacturer

XP POWER

Width

10.16mm

Length

11.68mm

Output voltage

5V DC

Number of outputs

1

Depth

7.5mm

Input voltage

9 - 72V dc

Efficiency

80%, 88%

A-Supplier

Allparts-UK-R

Series

SRH05

Mounting Type

Through Hole

Standards Met

EN 55032, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F

Weight

2.1g

Output Current

500mA

Load Regulation

0.6%

MTBF

4.5Mh

Ripple And Noise

75mV Pk-Pk

Package

SIP

Line Regulation

1%

Protection Features

Short Circuit Protection

Maximum Input Current

3 mA, 45 mA, 315 mA

Power Signal Conversion Type

DC-DC

Switching Frequency Range

120 - 800kHz
