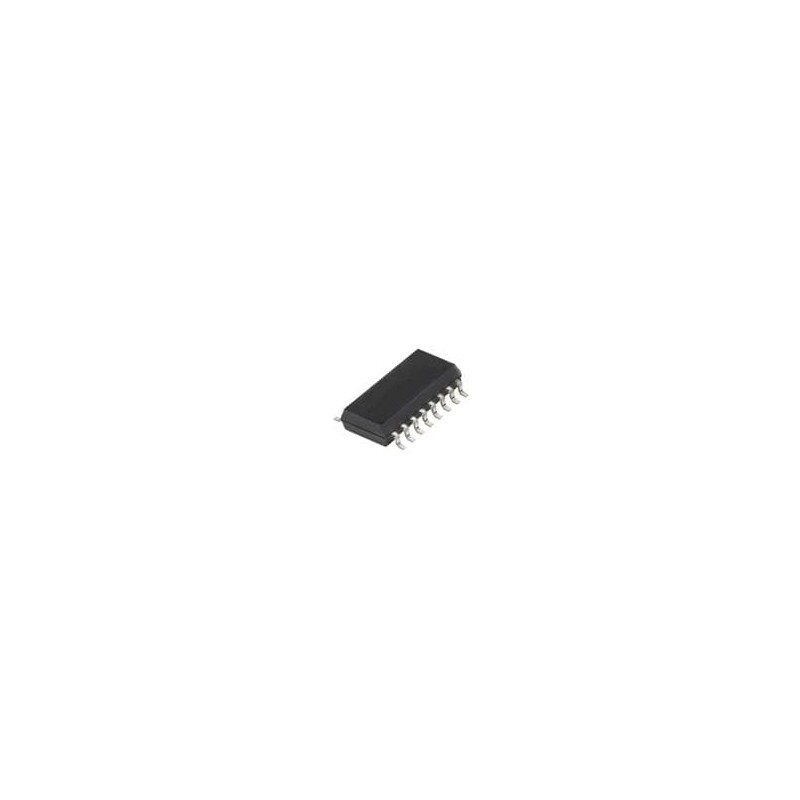

10 pcs : FAN7688SJX - Switching Controllers Cntrl-half-bridge resonant converter
    • 10 pcs : FAN7688SJX - Switching Controllers Cntrl-half-bridge resonant converter

    10 pcs : FAN7688SJX - Switching Controllers Cntrl-half-bridge resonant converter

    10(AllpartsUK)512FAN7688SJX
    10 pcs : FAN7688SJX - Switching Controllers Cntrl-half-bridge resonant converter
    £62.76
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    FAN7688 Advanced Pulse Frequency Modulated Controller Fairchild FAN7688 Advanced Pulse Frequency Modulated Controller offers best-in-class efficiency for isolated DC/DC converters. It's a controller for LLC resonant converters with Synchronous Rectification (SR) and employs a current mode control technique based on a charge control. The triangular waveform from the oscillator is combined with the integrated switch current information to determine the switching frequency. This provides a better control-to-output transfer function of the power stage simplifying the feedback loop design while allowing true input power limit capability.Learn More
    Product Details
    10(AllpartsUK)512FAN7688SJX
    FAN7688SJX
    10 Items

    Data sheet

    Manufacturer
    ONSEMI
    Series
    FAN7688
    Maximum Operating Temperature
    + 125 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    SMD/SMT
    Product Type
    Switching Controllers
    Package/Case
    SOP-16
    Product Category
    Switching Controllers
    Packaging
    MouseReel
    RoHS
    Details
    Brand
    onsemi / Fairchild
    Factory Pack Quantity Factory Pack Quantity
    2000
    Subcategory
    PMIC - Power Management ICs
    Unit Weight
    242 mg
