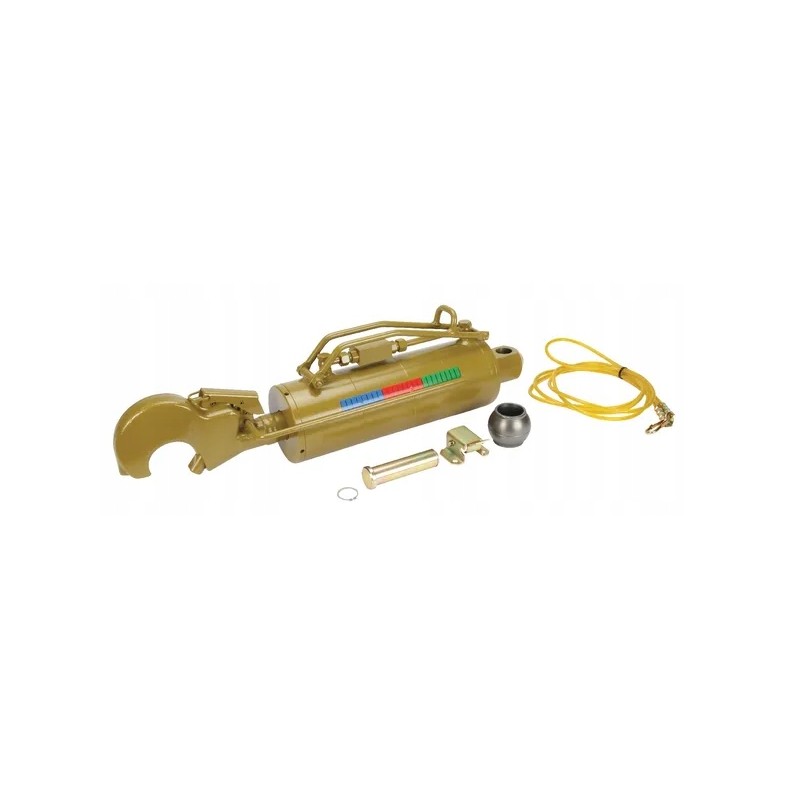

Upper link, hydraulic hook with ball, category 4HD, OE

Hydraulic upper connector, hook with ball cat.4HD, Ø 120 mm

Part number: K. 205132

EAN: 8432970418561

Unit: Piece

Specifications: The length given is the length without the fork head, measured at the center of the distance

Application: For tractors up to 294 kW

Benefits:

Maximum pulling and pressing force for the highest power requirements

Versatile in use by installing various clevis heads

Valve block protection with a specially reinforced bow

Type mountings - piston rod side: Hook

Mounting type - cylinder side: No mounting element

Mounting category - piston rod side: 4

Mounting category - cylinder side: 4

Consisting of:

Equipped with a handle and handle on the tractor side

Note: the fork head must be ordered separately!

Without the set hoses

L minMin length: 659mm

L maxMax length: 907mm

L3 Stroke: 248mm

Cylinder bore diameter: 120mm< p>

Outer diameter: 135mm

Mounting hole diameter - piston rod side: 45.2mm

Max. tractor power: 294kW
